TN-3409L / 2409L

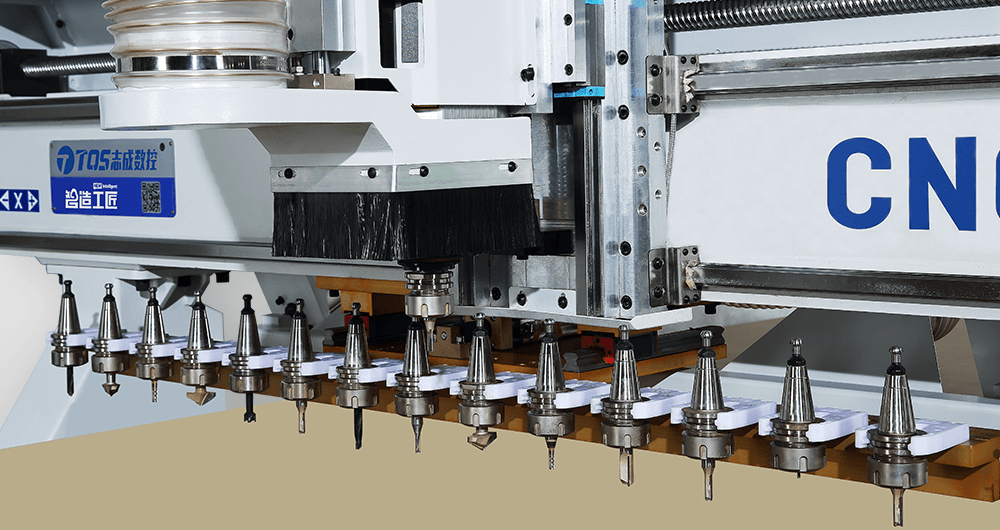

12-position straight-line tool magazine, flexible and automatic tool switching

This machine is suitable for the processing and production of panel furniture cabinets and door panels. It can quickly drill holes, cut grooves and perform cutting and material processing. It can process the installation holes of common two-in-one and three-in-one connectors for panel furniture and has the function of processing some types of invisible connectors. This machine is equipped with a 9KW high-power tool-changing spindle and a direct-type tool magazine, making it suitable for the processing of diversified and complex products or various processing tasks. It can perform one-time material cutting, drilling, cutting, edge rounding, engraving, etc. The operation is simple and it is particularly suitable for customized production and processing.

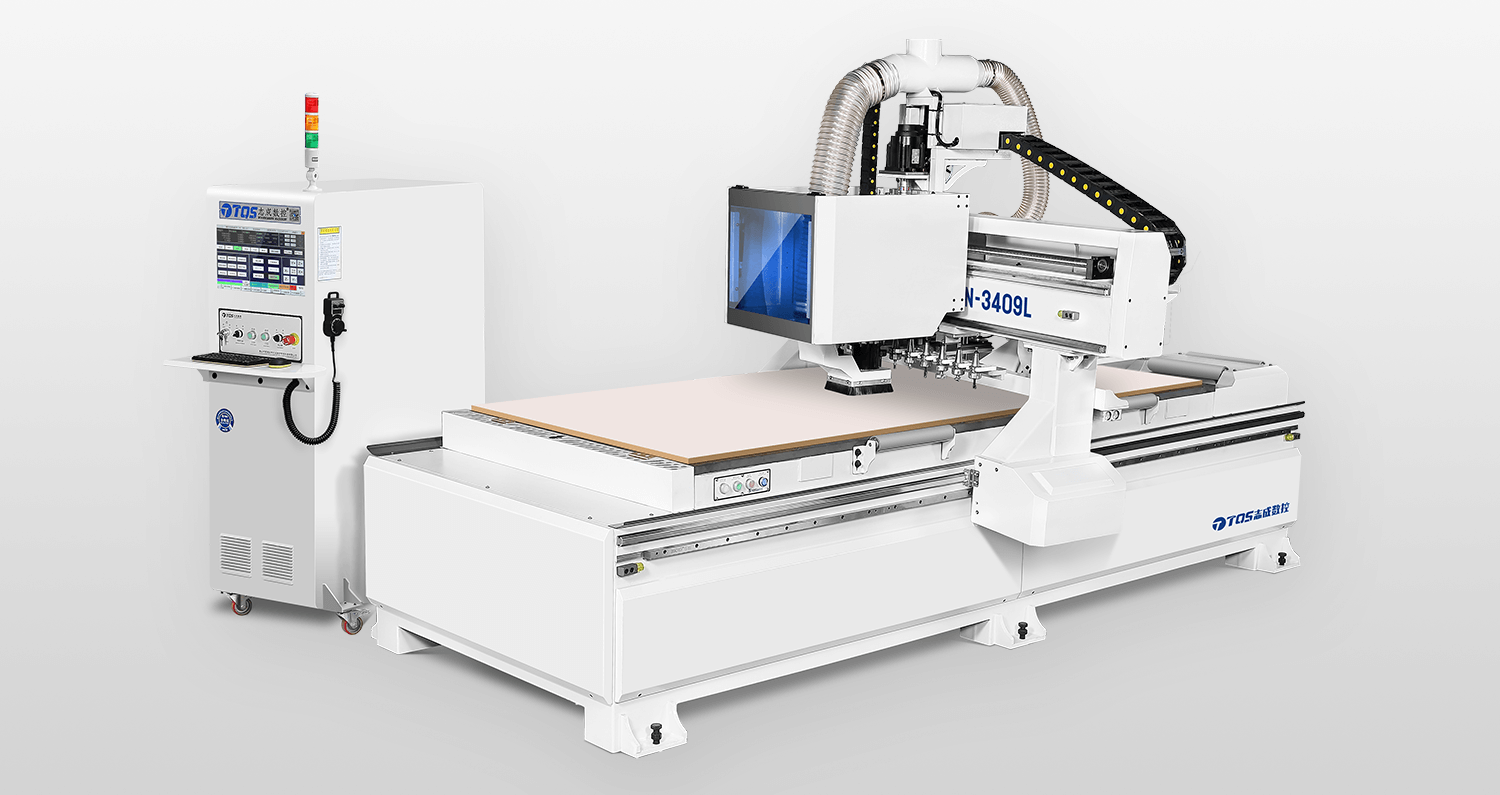

TN-3409L

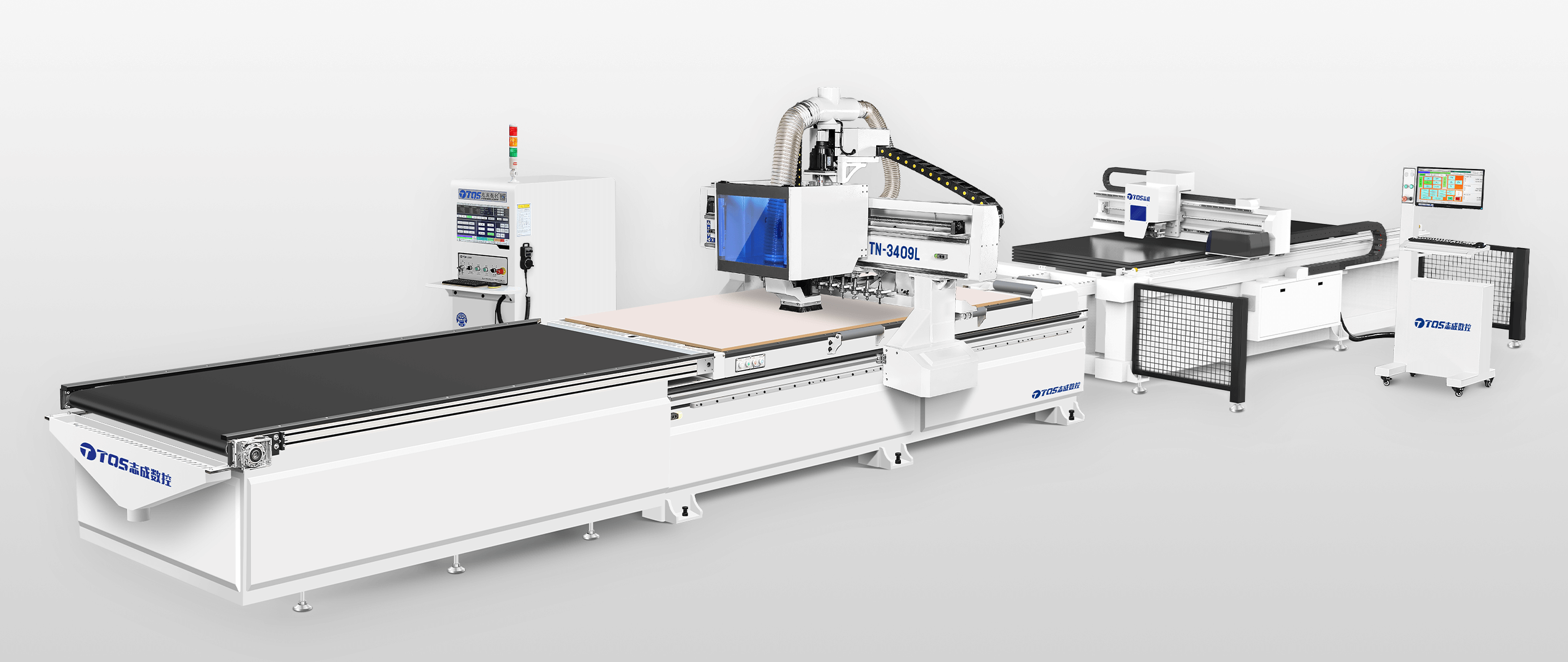

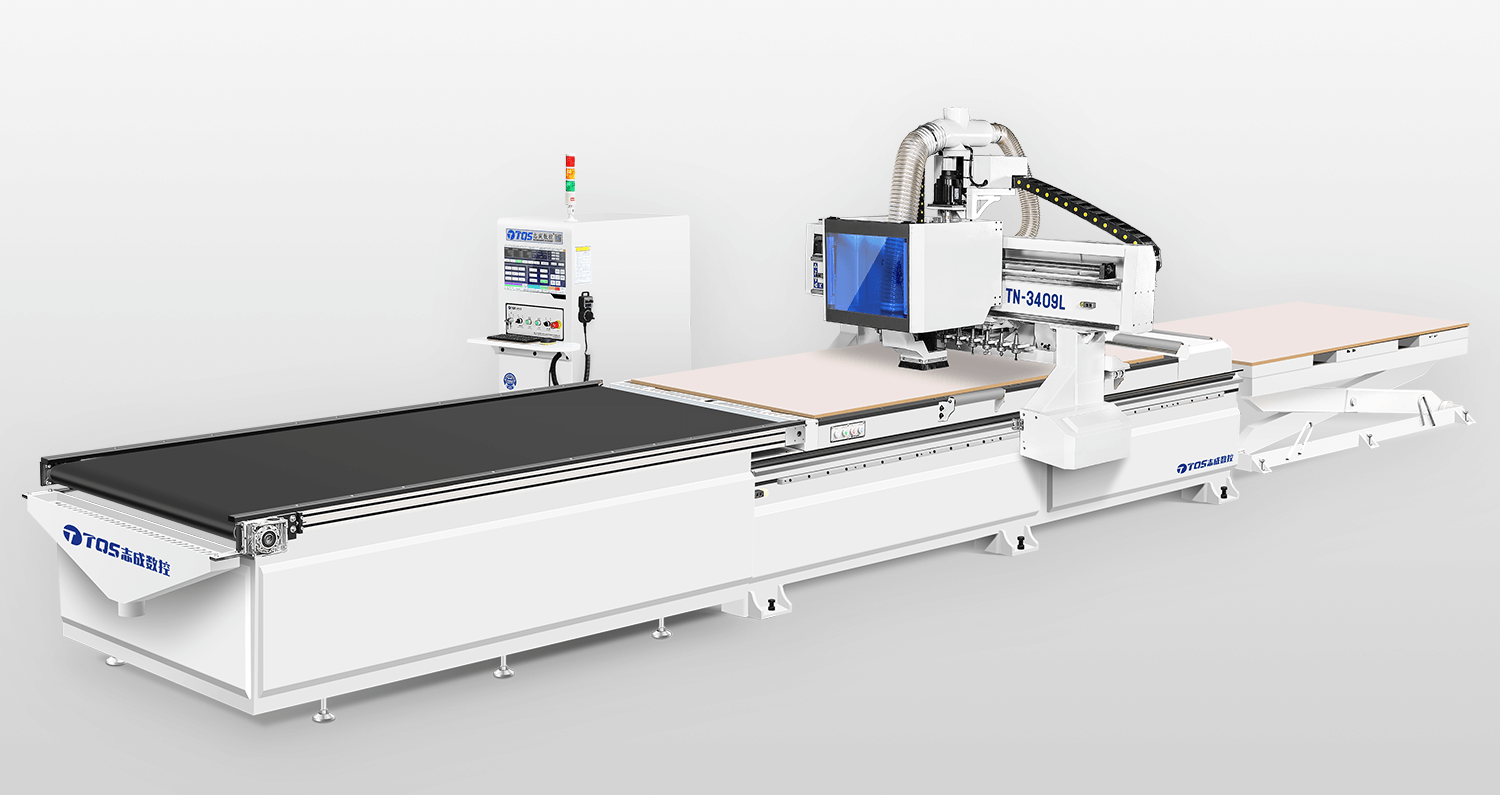

TN-3409L

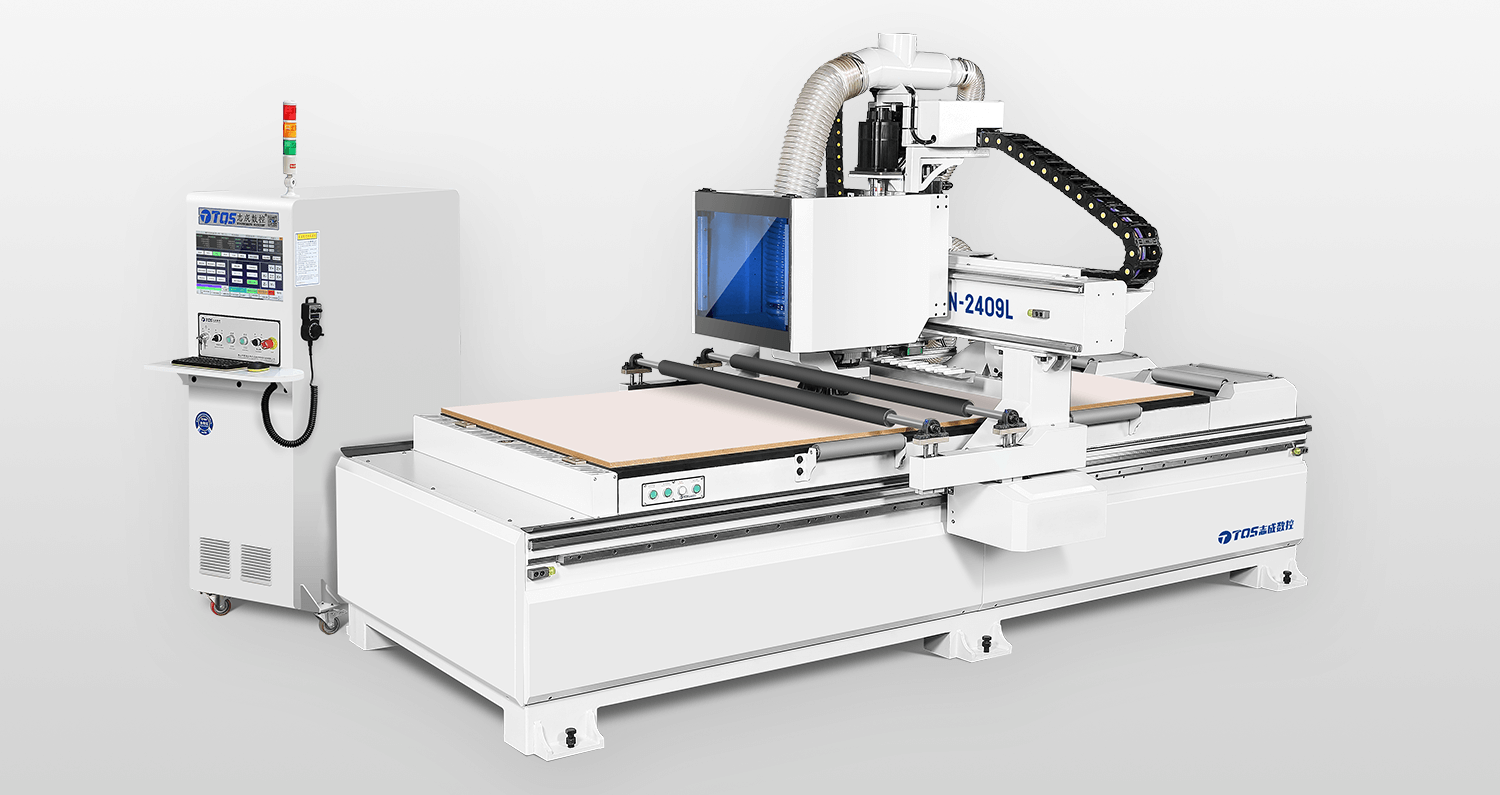

TN-2409L

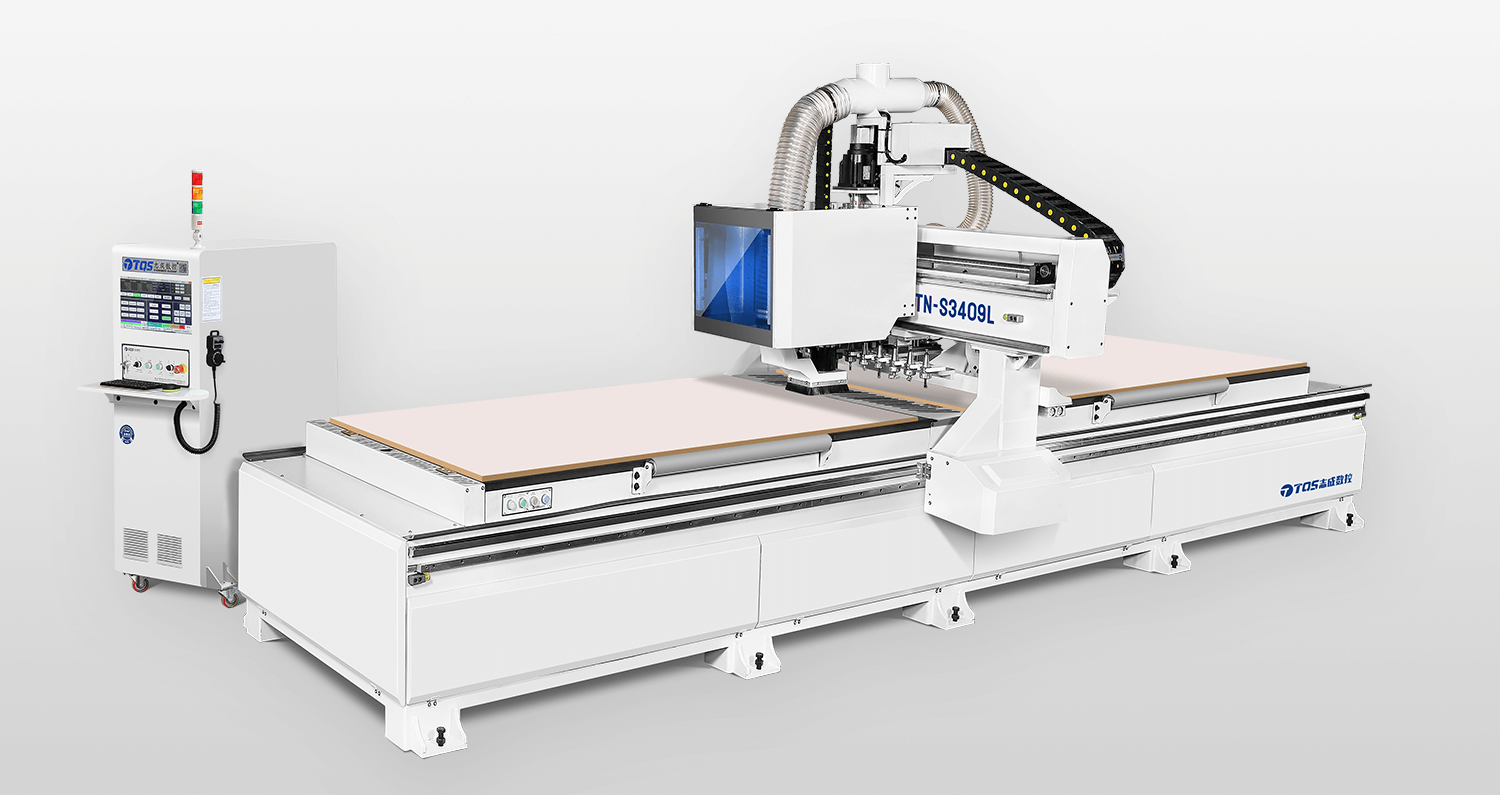

TN-S3409L

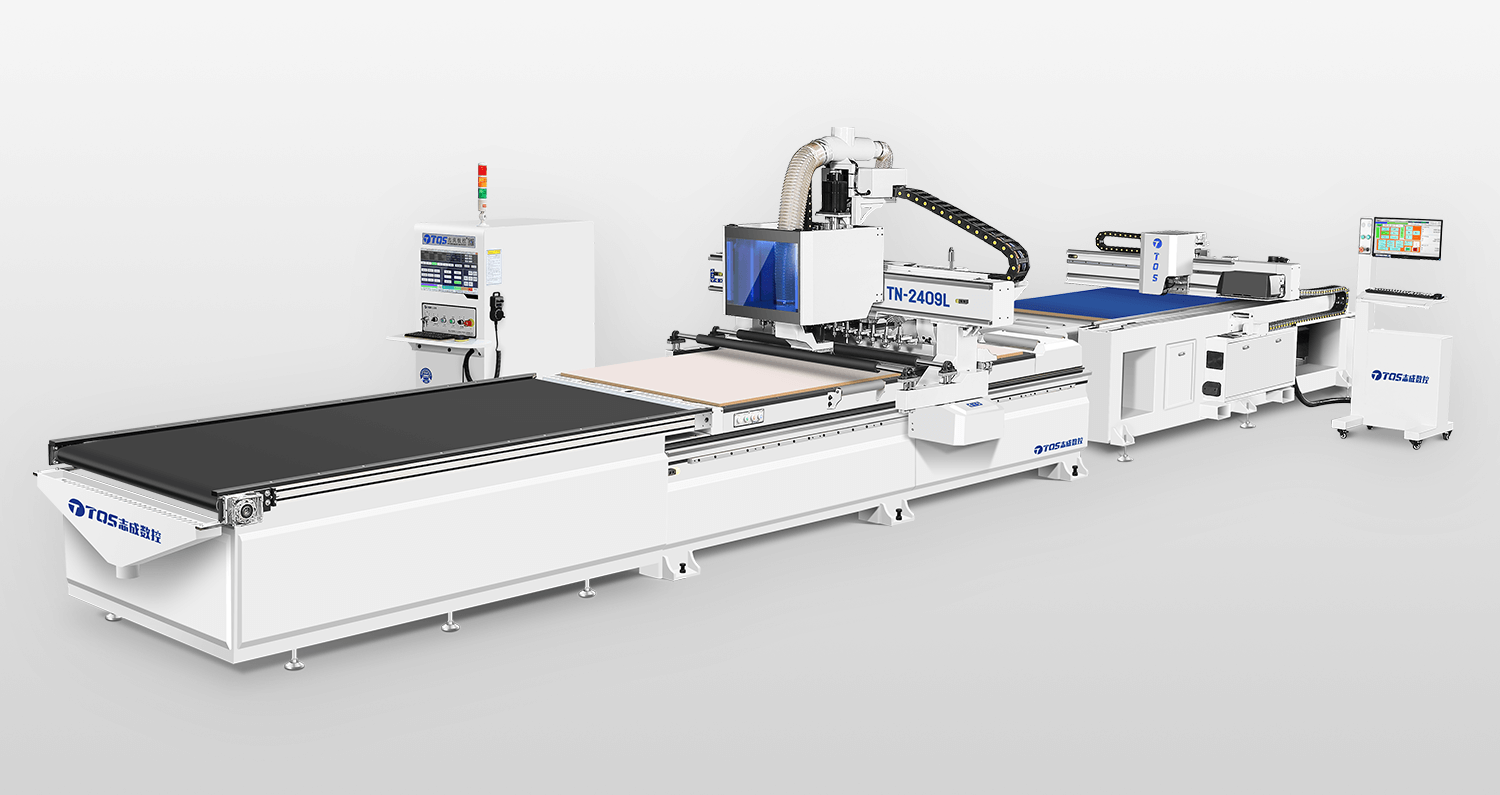

TN-2409L

Equipment highlights

• Flexible automated production units - cutting-edge technology supports large-scale production, keeping enterprises in a state of high-efficiency operation all the time.
• Automatic loading and unloading - Enhance production efficiency and reduce production costs.
• Open interface port - Can be perfectly integrated with various order splitting and optimization software.
• Intelligent dust removal system - Effective cleaning and collection of particle waste at each stage
• Lead screw drive - The high-precision lead screw drive on the X-axis ensures the best machining accuracy and stability.

Processing unit

9KW automatic tool changing air-cooled spindle

High-strength gantry crane

High-precision dust-proof guide rail

High-precision lead screw drive along X-axis (Series 3)

High-precision drive servo motor

Vacuum suction device for sheet loading (Series 3)

Hidden non-interference design automatic tool setting device

Dust-free processing system

Heavy-duty high-rigidity bed

Automatic lubrication system

Double roller device (optional)

Pneumatic push alignment device (optional)
