TN-3409B / 2409B

Four-process CNC machining center

This machine is specifically designed for processes such as drilling, cutting, grooving, and milling in panel furniture. It innovatively adopts a zero-second spindle switching technology and introduces advanced rapid drilling techniques, making the cutting process of custom furniture smoother and significantly enhancing processing efficiency. It is equipped with a professional digital control system that uses a unique intelligent budgeting algorithm to fully utilize the motor's potential, achieving high-speed processing, simultaneous processing of straight and curved lines, and more perfect curves.

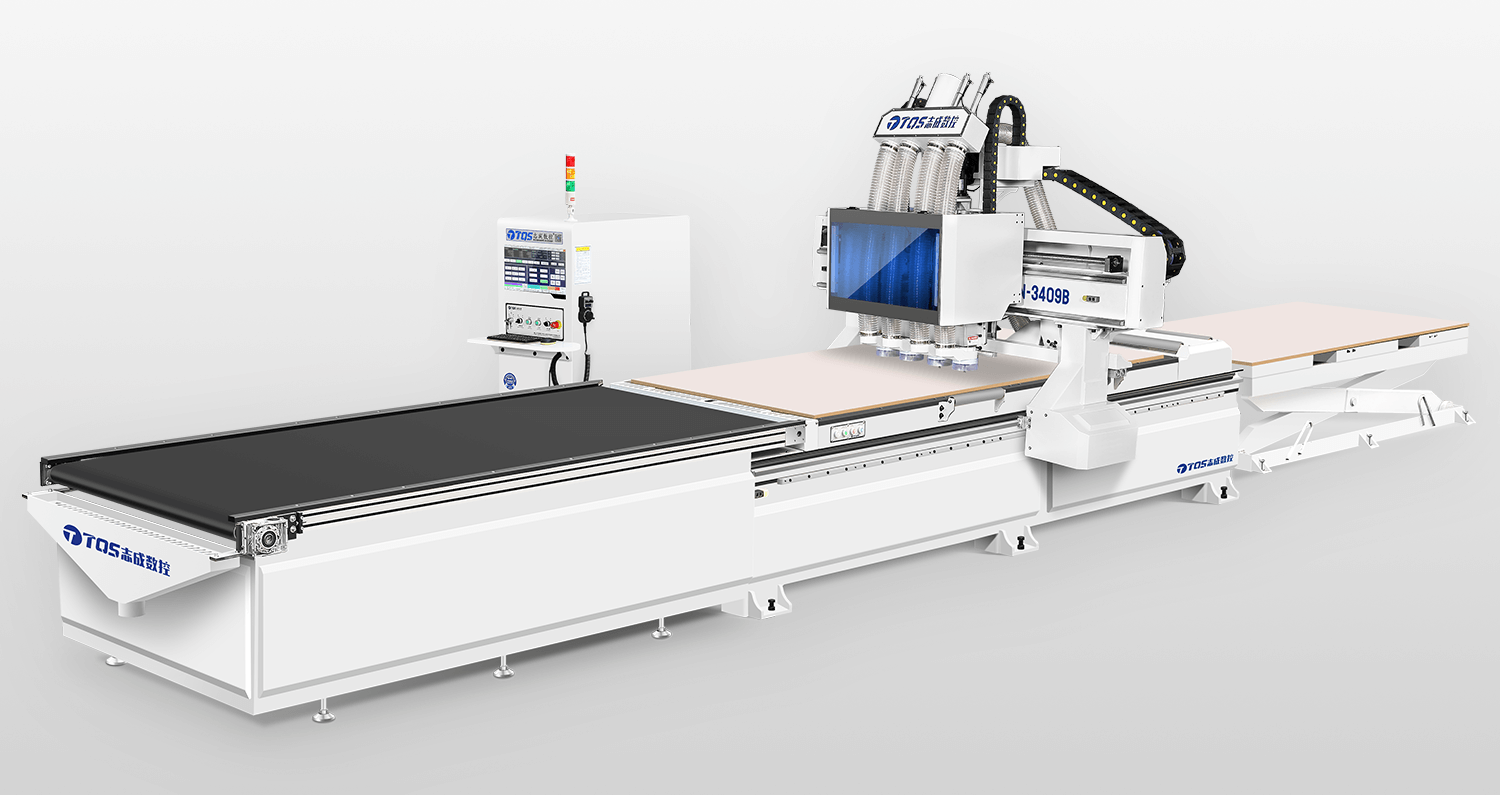

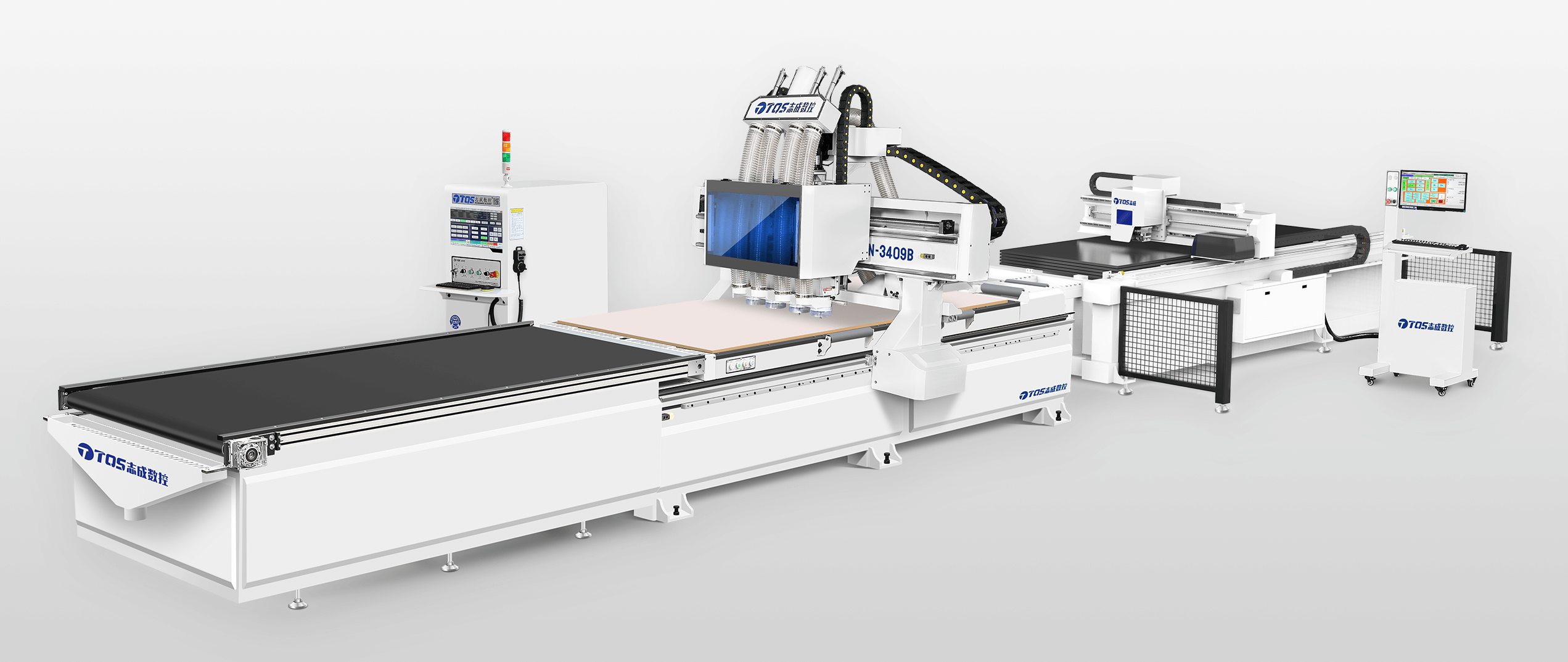

TN-3409B

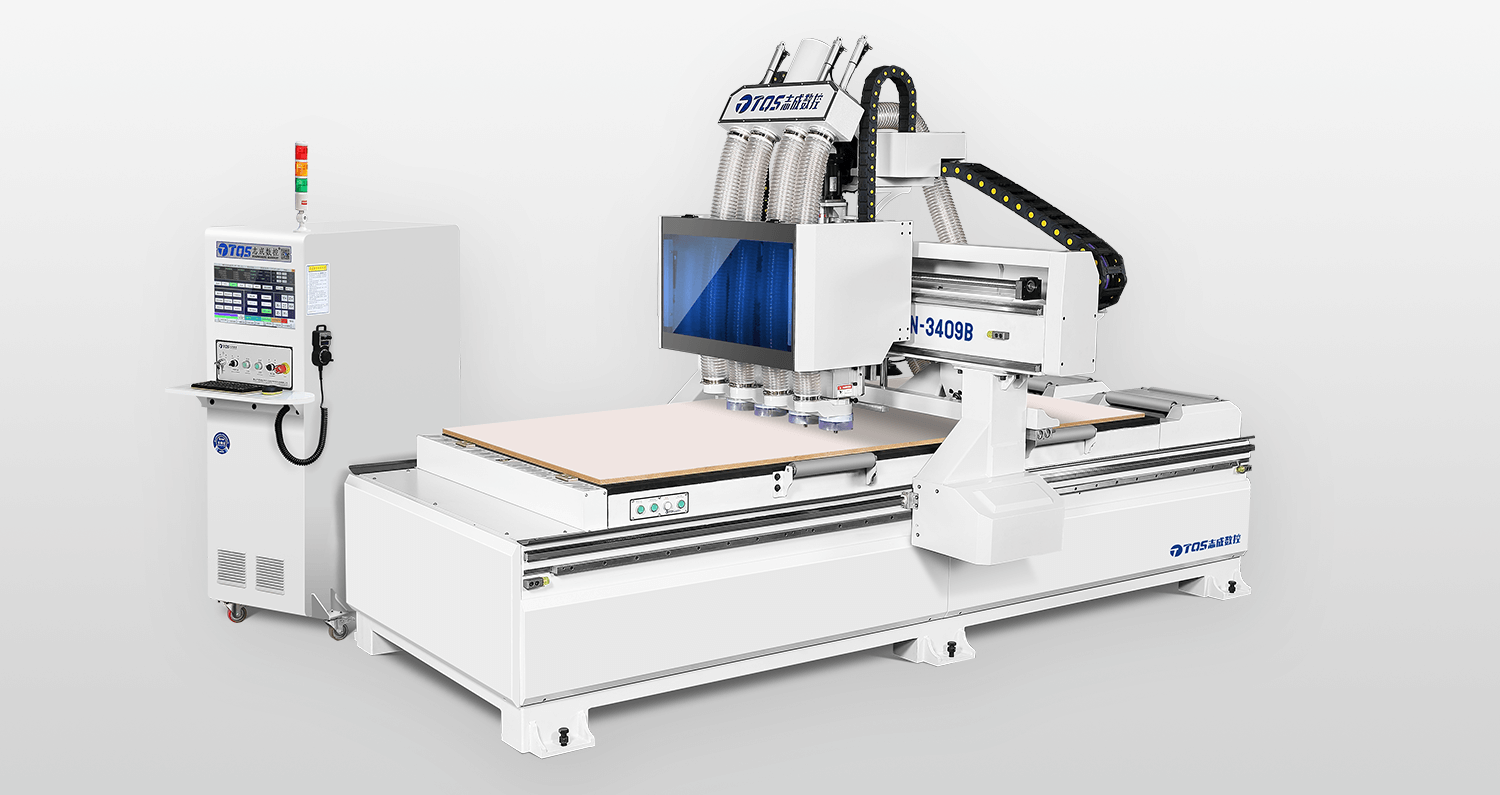

TN-3409B

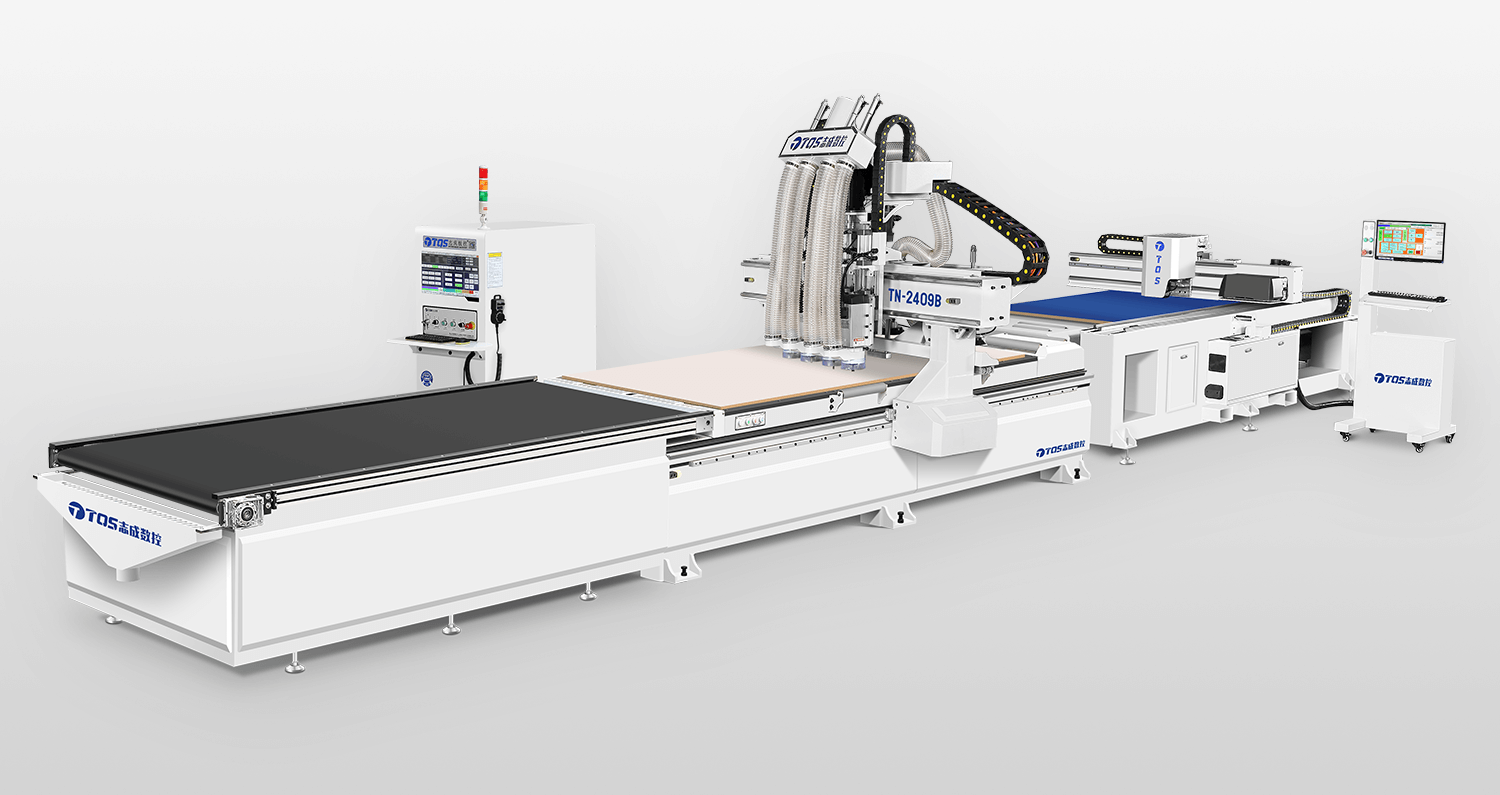

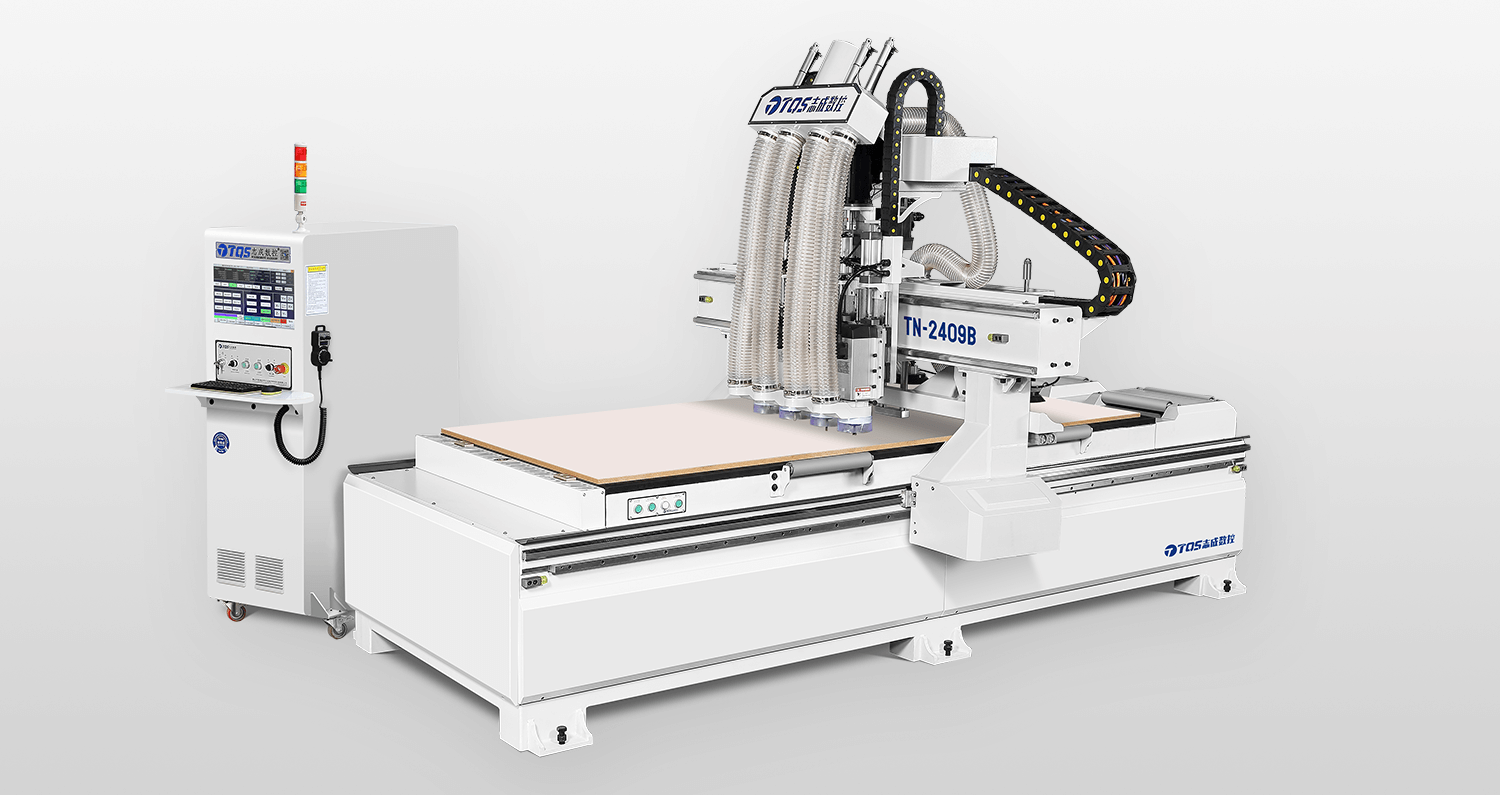

TN-2409B

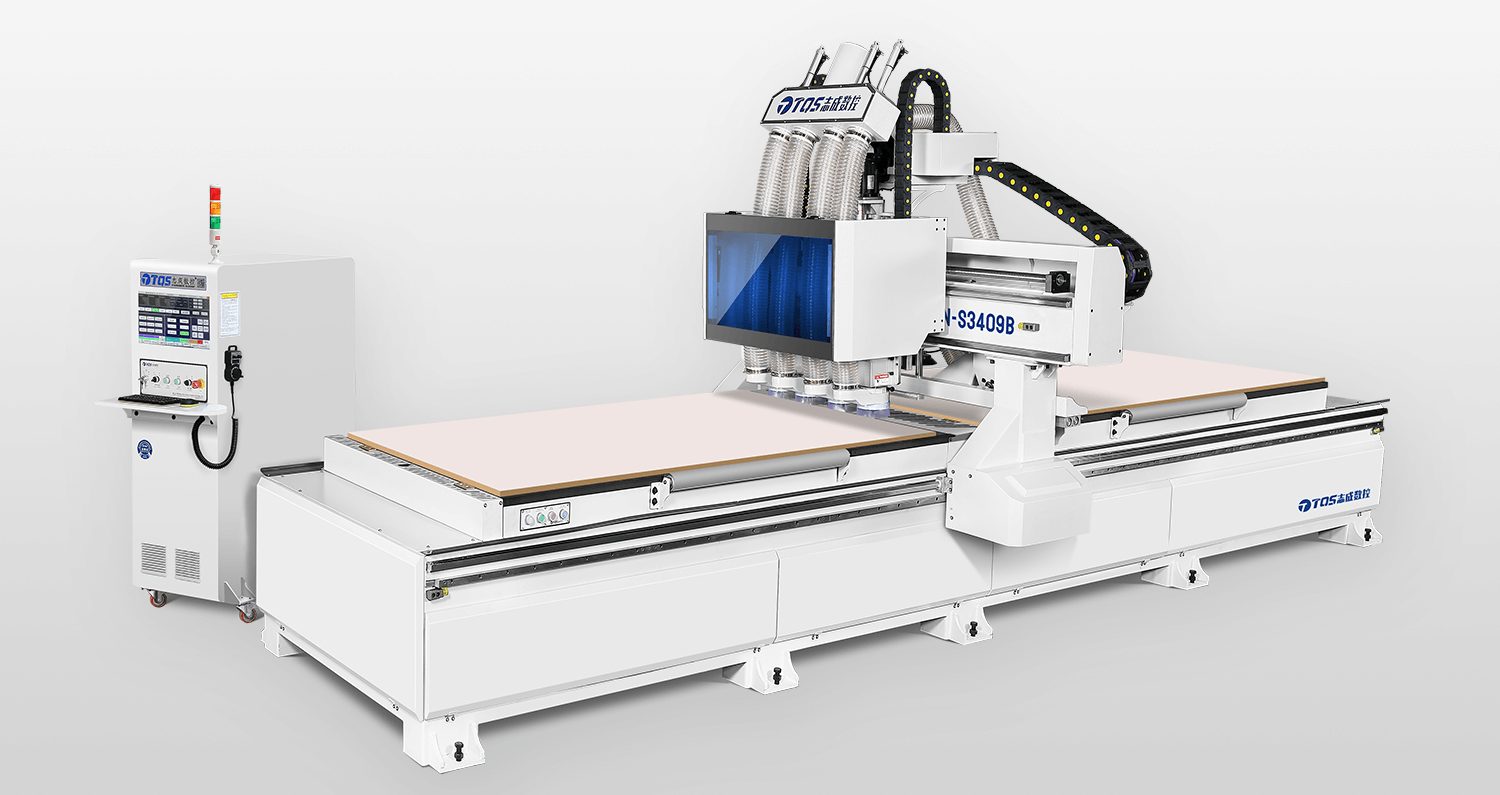

TN-S3409B

TN-2409B

Equipment highlights

• Feeding, processing and discharging are completed in one go.
• Innovation - Instantaneous spindle changeover for processing, enabling automatic multi-process machining.
• Process - Cutting to size, milling, vertical drilling, slotting
• Core components - Utilizing international brand components to ensure stable performance.
• Intelligent dust removal system - Effective cleaning and collection of particle waste at each stage
• The automatic tool setting adopts a hidden and non-interfering design - high-precision tool setting device, with a thousandth-level precision performance.

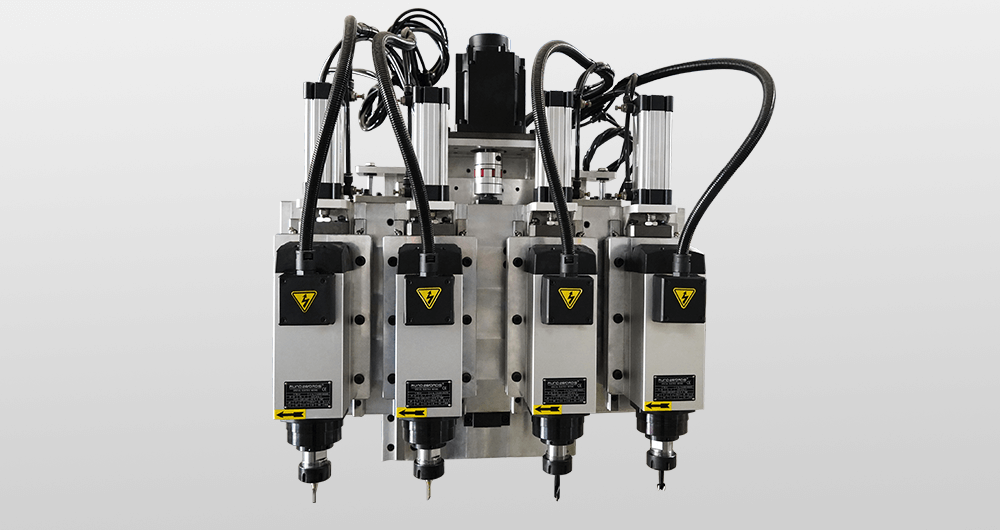

Processing unit

High-strength gantry crane

High-precision dust-proof guide rail

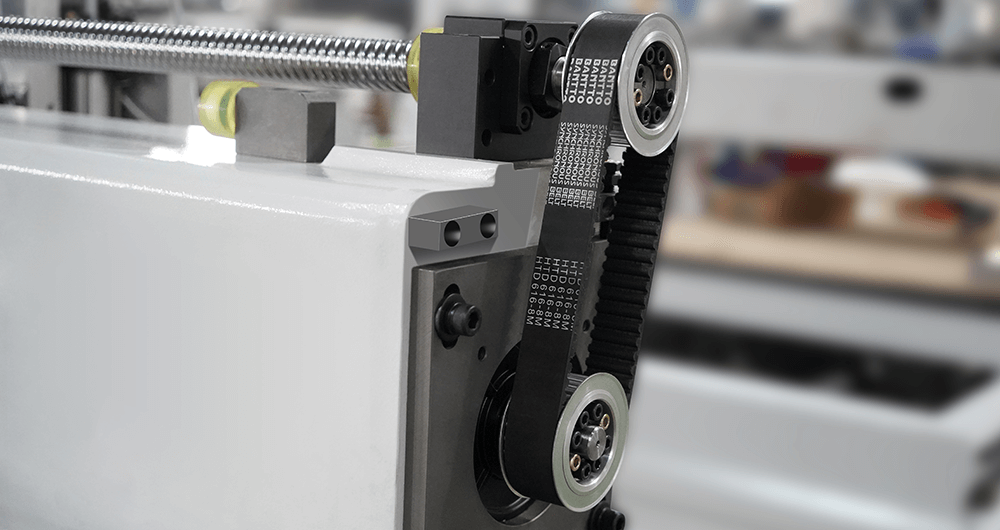

High-precision lead screw drive along X-axis (Series 3)

High-precision drive servo motor

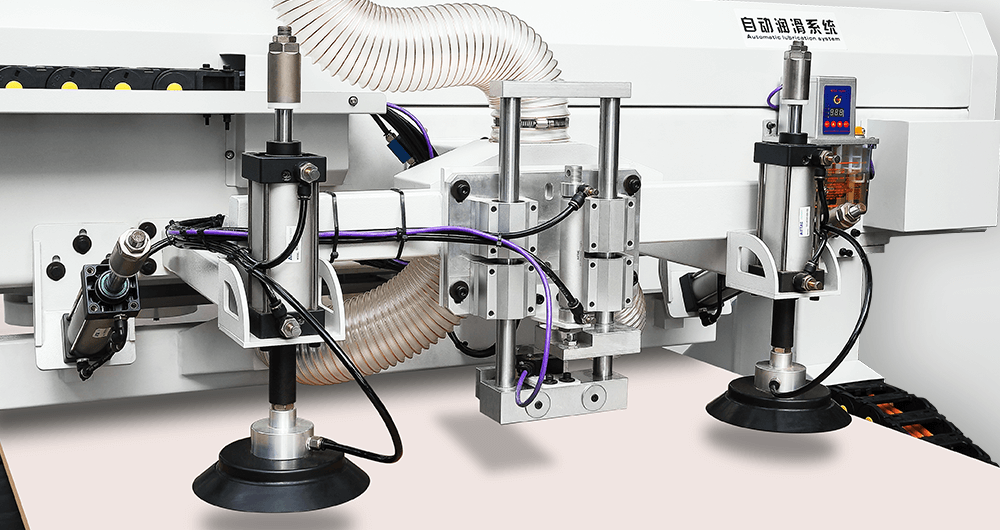

Vacuum suction device for sheet loading (Series 3)

Hidden non-interference design automatic tool setting device

Heavy-duty high-rigidity bed

Automatic lubrication system

Double roller device (optional)

Pneumatic push alignment device (optional)
