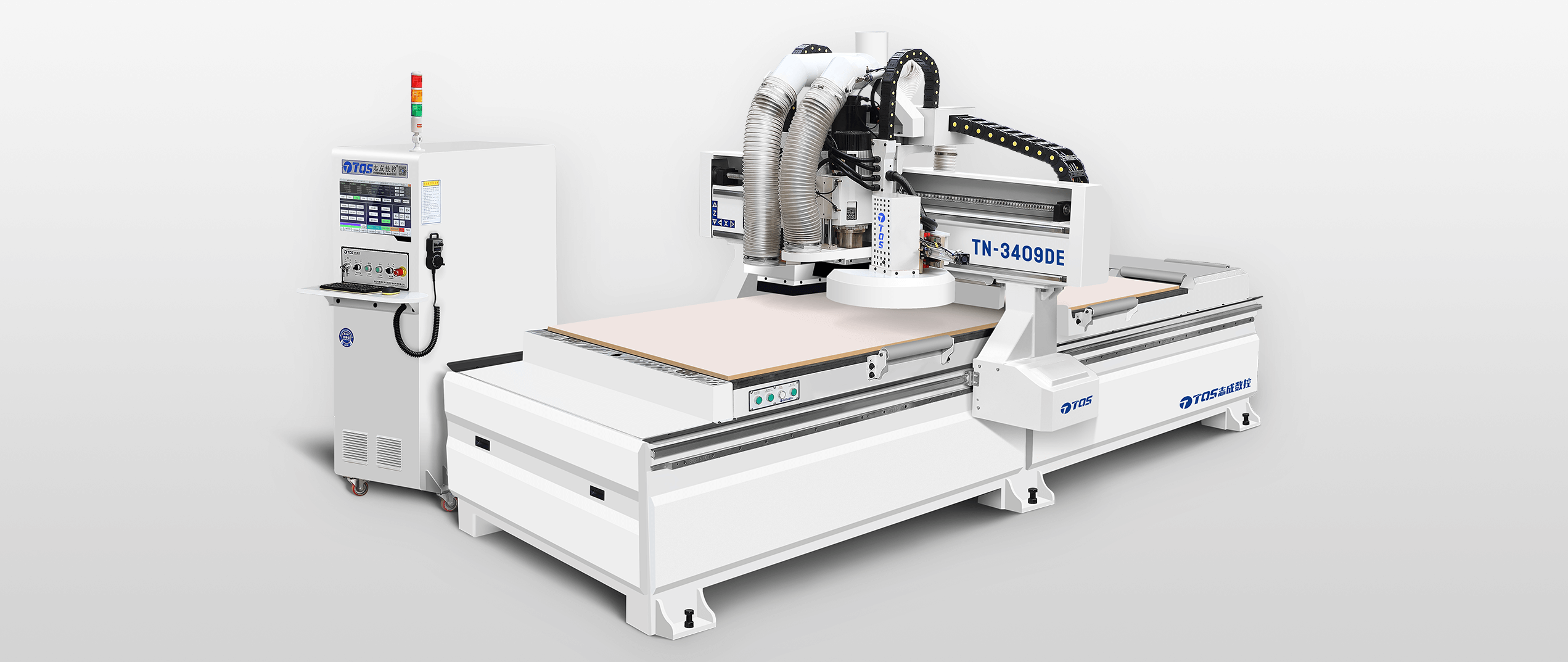

TN-3409DE

A multi-functional machining center suitable for all types of processing.

The TN-3409DE machining center is equipped with a Taiwan Puden (5+4) vertical drill and a 9KW high-power automatic tool changer spindle (with a maximum drilling speed of 24,000 r/min). It can not only precisely handle the three-dimensional angle milling of cabinet door panels but also efficiently address the irregular cutting and vertical drilling of cabinet bodies. For small and medium-sized enterprises aiming for high efficiency and ease of operation, this equipment is an ideal solution.

Equipment highlights

• Processing unit - Equipped with Taiwan Puden (5+4) vertical drilling head and 9KW high-power automatic tool changer spindle
• System - Taiwan Xinda Control System, independent control cabinet
• Heavy-duty bed structure body - Most mechanical parts are processed by advanced CNC machine tools and undergo annealing treatment.
• High-efficiency servo tool magazine, precise and high-speed tool position positioning
• A reasonable transmission design, with high-precision lead screw transmission on the X-axis, ensures the best processing accuracy and stability.
• Maintain high performance throughout continuous operation.

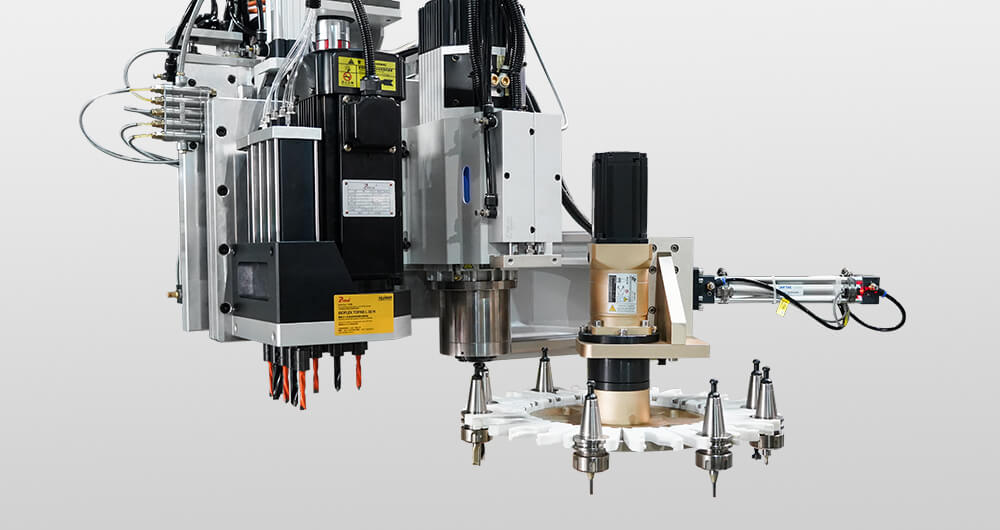

Processing unit

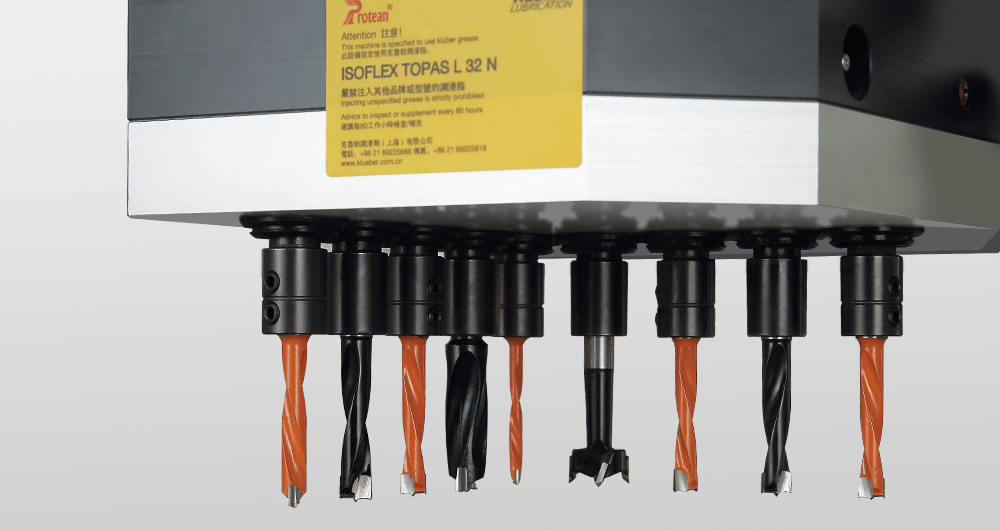

A9 (5 + 4) Distributed Drilling Machine

9KW automatic tool changing air-cooled spindle

High-efficiency servo tool magazine in a conical hat style

High-strength gantry crane

High-precision dust-proof guide rail

High-precision lead screw drive along the X-axis

High-precision drive servo motor

Suction cup device for loading sheet materials

Hidden non-interference design automatic tool setting device

Dust-free processing system

Heavy-duty high-rigidity bed

Automatic lubrication system

Double roller device (optional)

Pneumatic push alignment device (optional)
