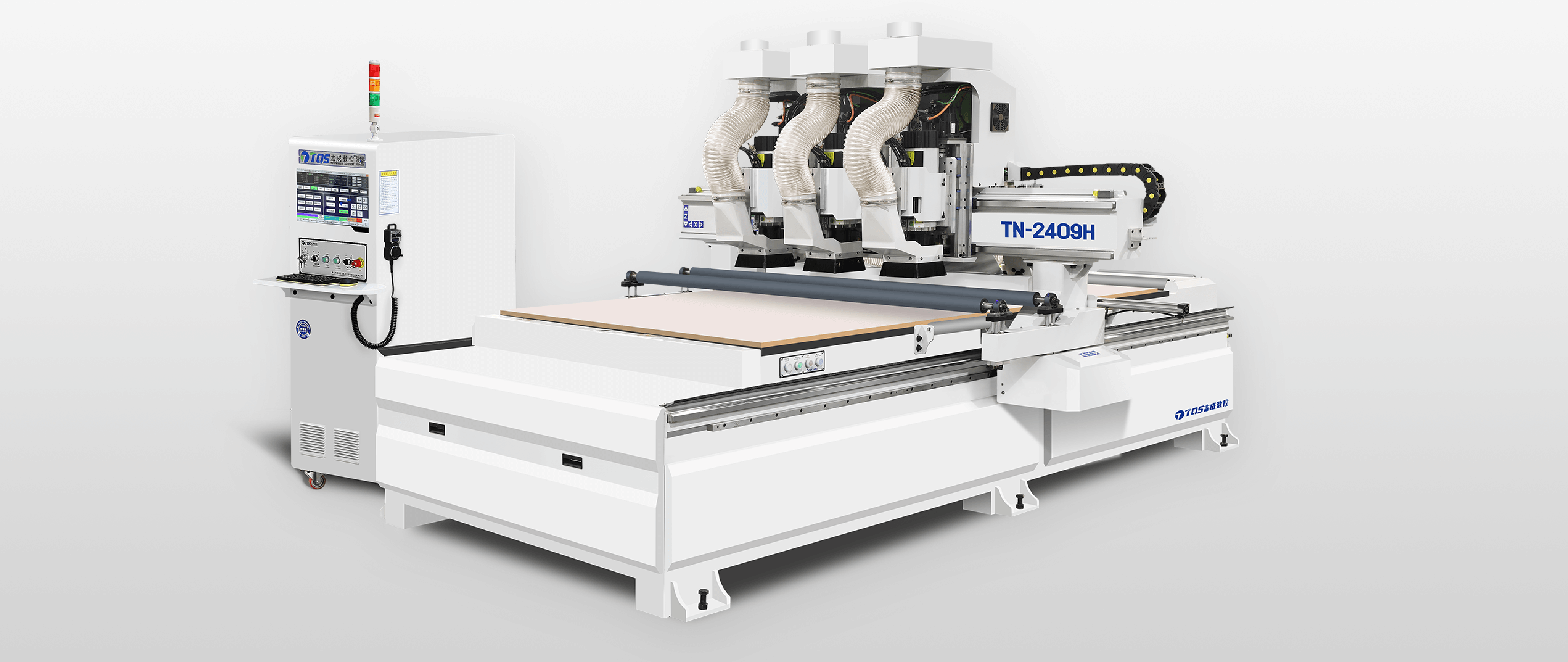

TN-2409H

Simultaneous processing of sheet materials by three spindles

The TN-2409H is a CNC equipment specifically designed for cutting and drilling materials for custom-made panel furniture. It can process three identical workpieces at a time, including the engraving of solid wood, panels, and simple door types. It is equipped with a 3*9KW power automatic tool changer spindle (with a maximum drilling speed of 24,000 r/min) to ensure processing accuracy and speed.

（ CNC Nesting center ）

Equipment highlights

• High efficiency - Three processes simultaneously processing the same workpiece
• It can continuously and uninterruptedly complete the processing of three types of procedures.
• Pneumatic rubber-coated pressure roller - Ensuring processing accuracy and preventing deformation of sheet materials
• 9KW high-power automatic tool changer spindle
• Pneumatic push feeding device - Automatic alignment and fixation of sheet materials

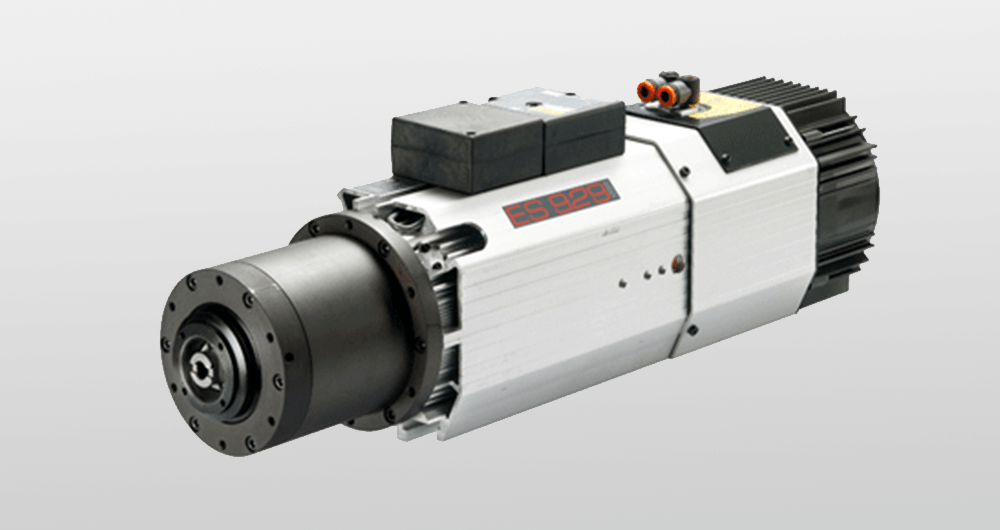

3*9KW automatic tool changing air-cooled spindle

High-strength gantry crane

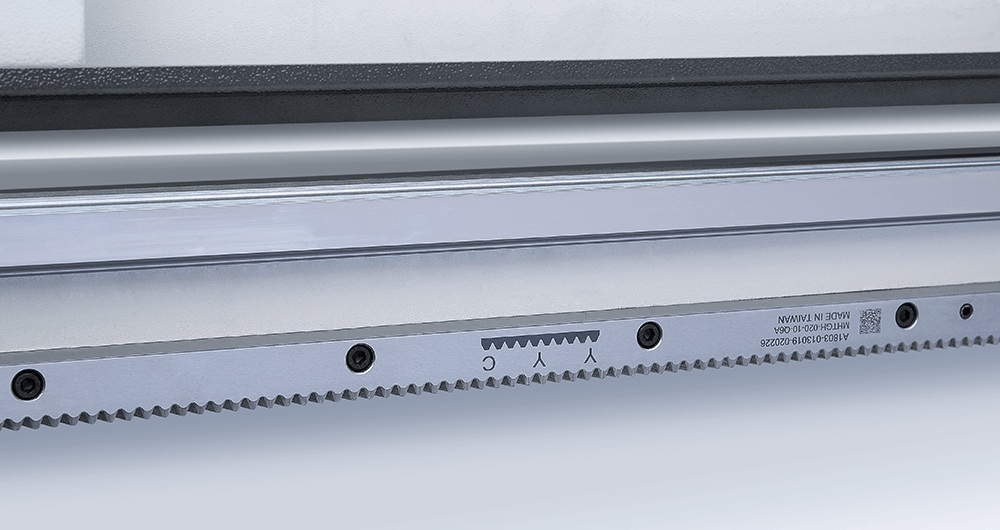

High-precision dust-proof guide rail

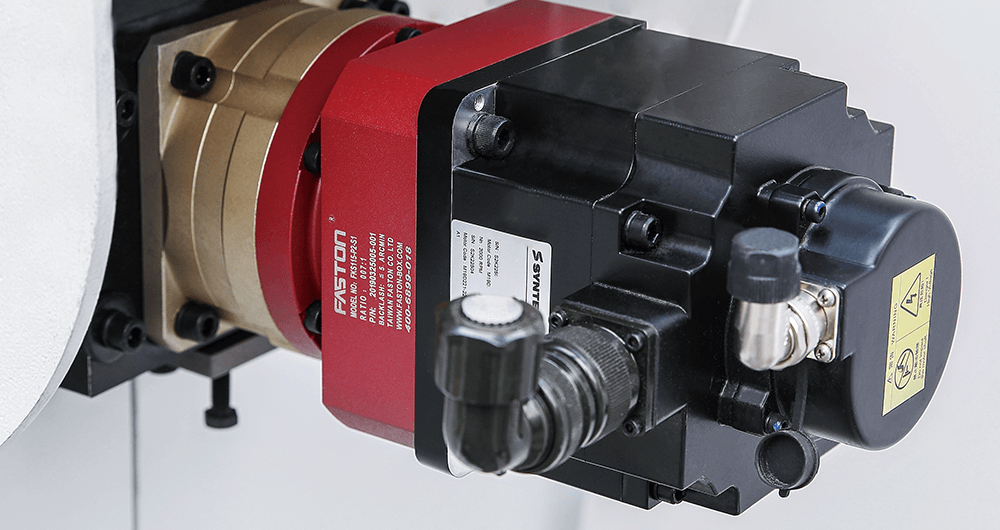

High-precision drive servo motor

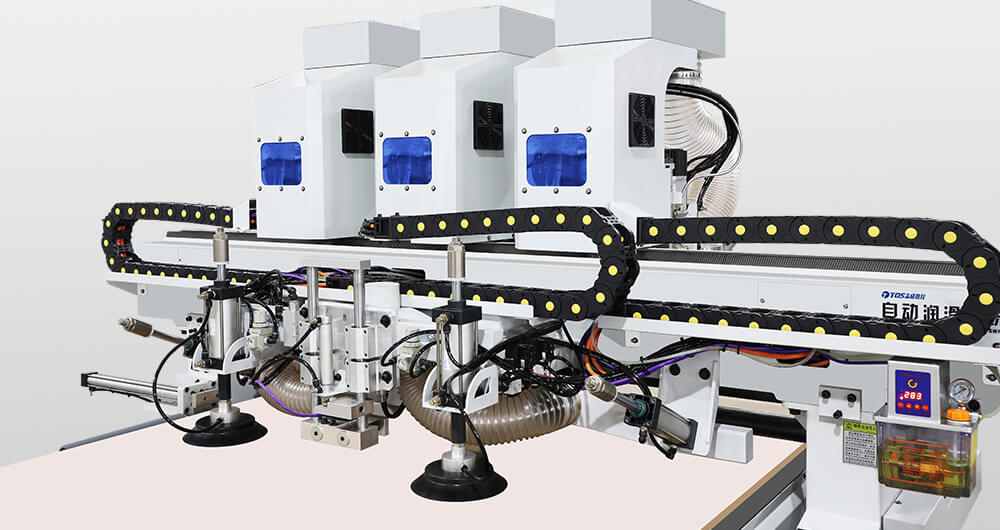

Suction cup device for loading sheet materials

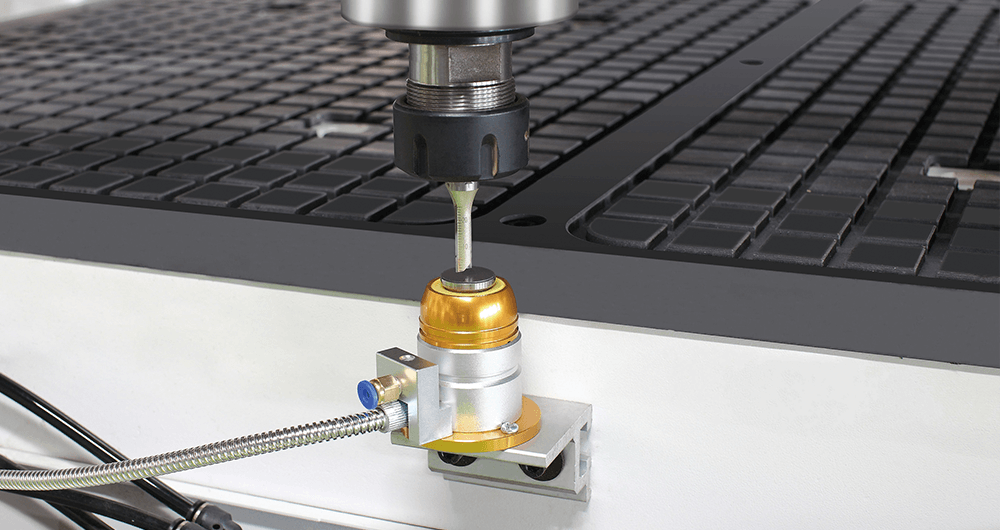

Hidden non-interference design automatic tool setting device

Dust-free processing system

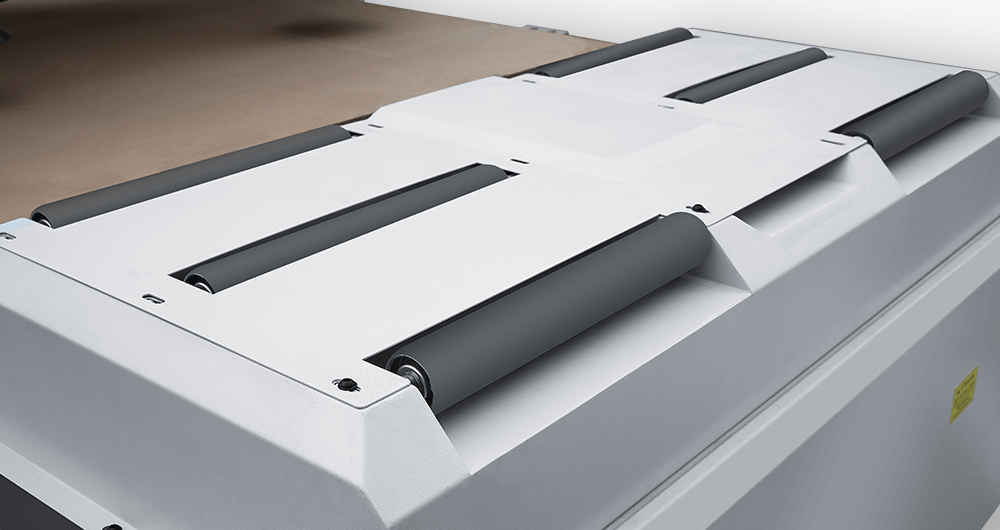

Drum-assisted feeding

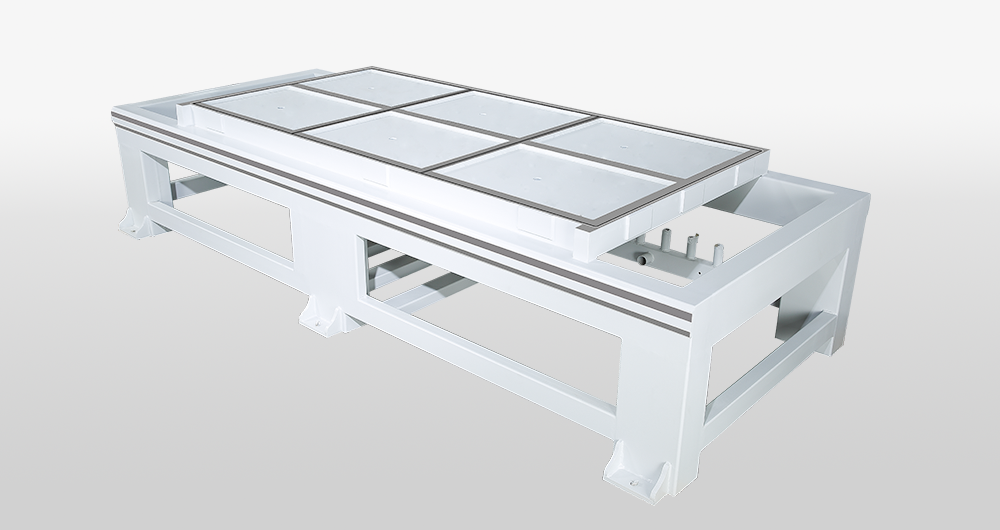

Heavy-duty high-rigidity bed

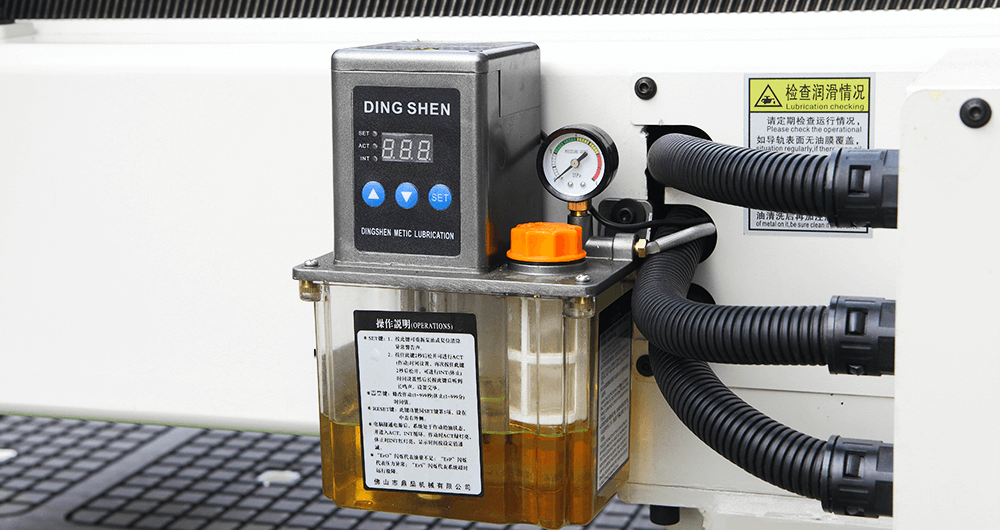

Automatic lubrication system

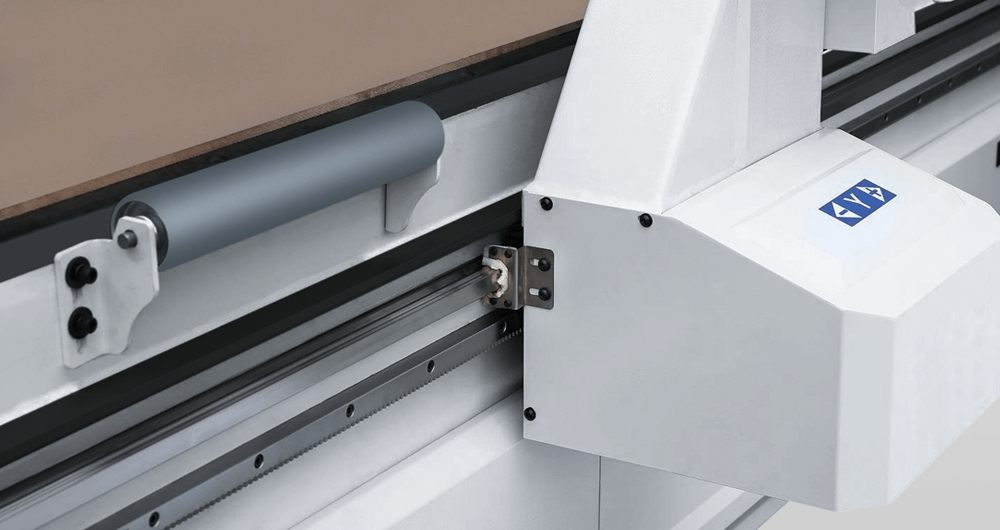

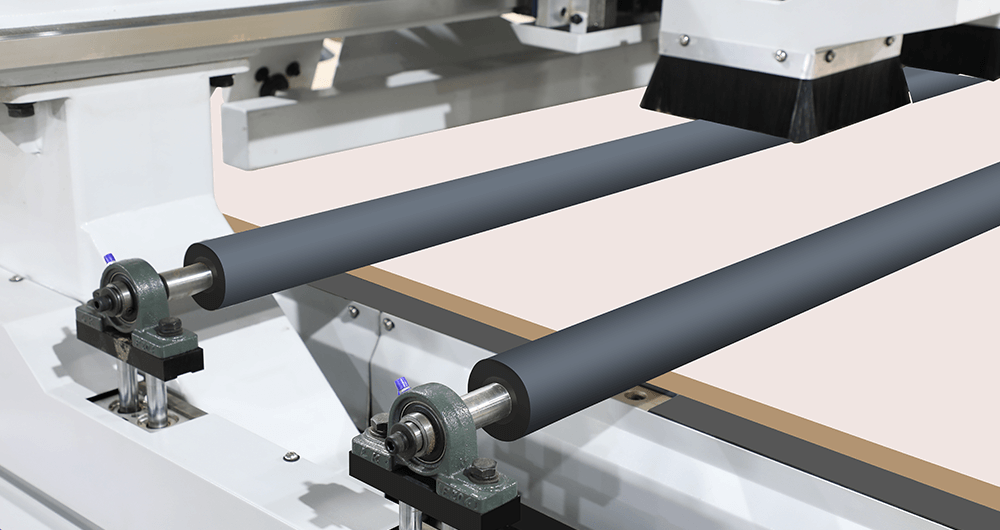

Double-roller device

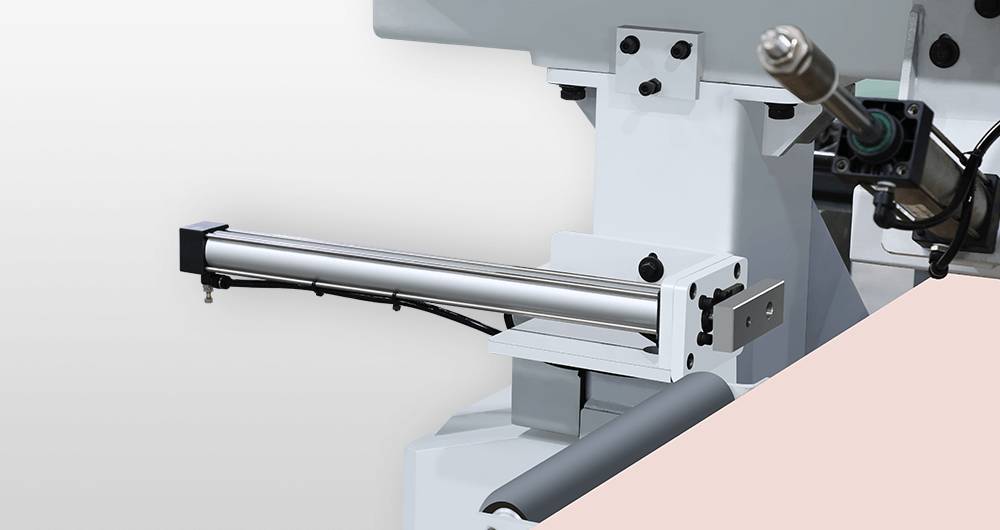

Pneumatic push feeding alignment device
