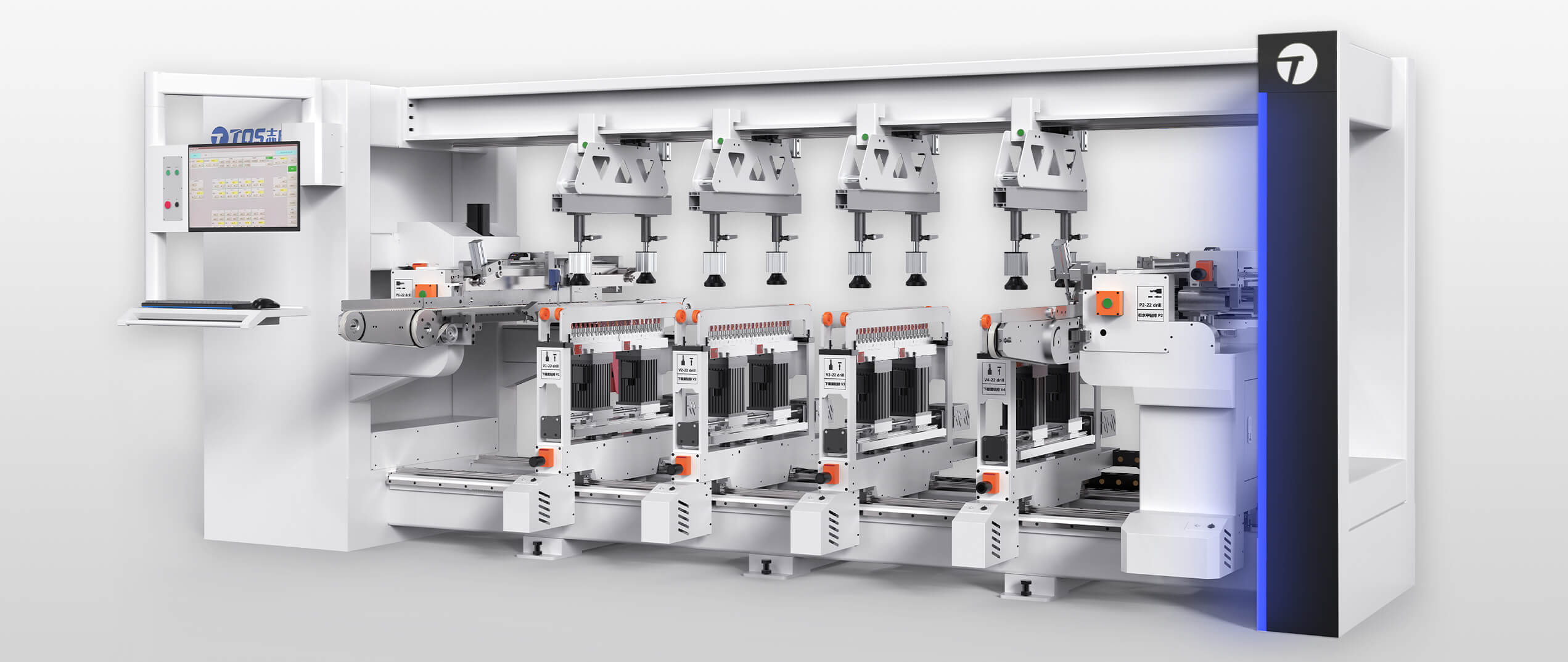

DRIILMAC C-610AP

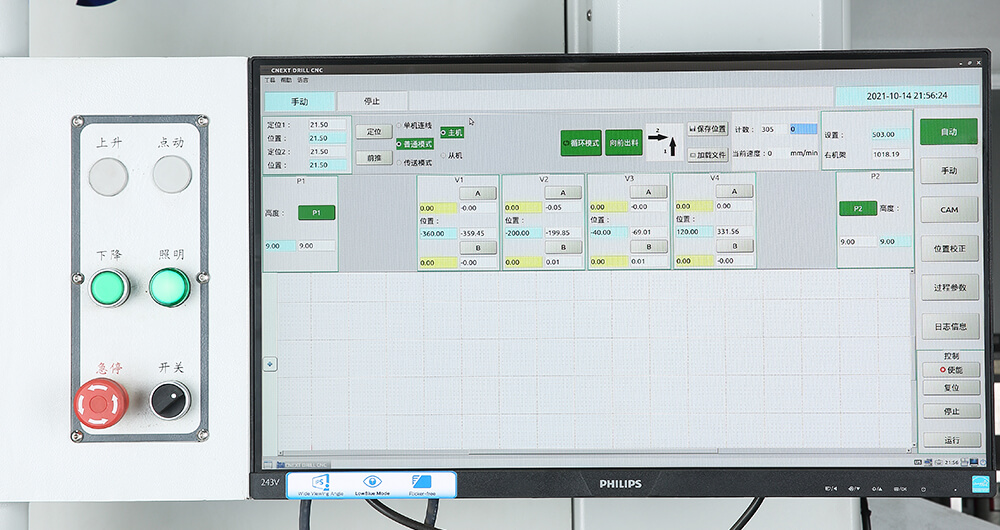

A powerful control system enables rapid drilling operations.

The processing unit automatically adjusts the drill array to the actual size of the board according to the control system, without the need for manual intervention by personnel, ensuring the highest production efficiency. All servo drives are controlled by the same numerical control system, combining high productivity with the ability to process small batches in sequence.

(Series of CNC Multi-spindle Drilling Machines)

Equipment highlights

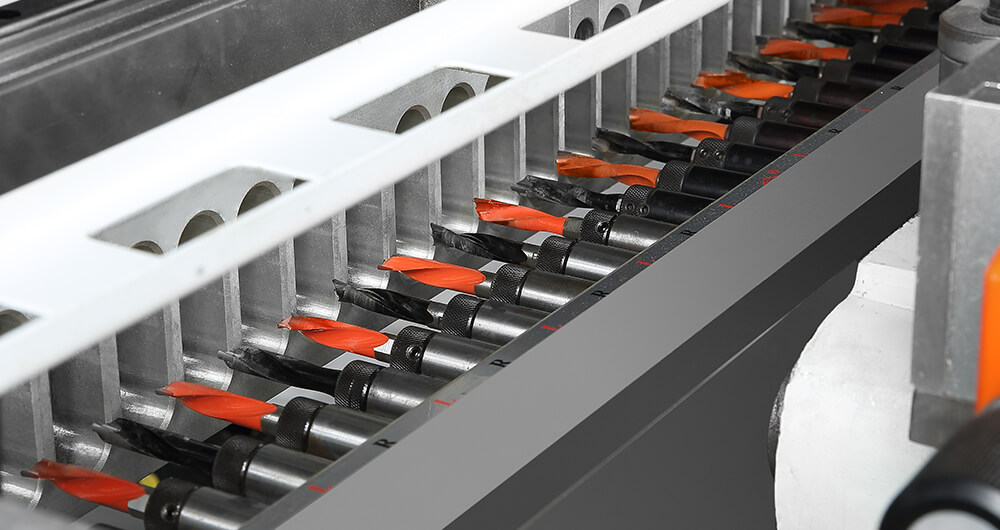

  • The drill pattern automatically adapts to the actual size of the board.

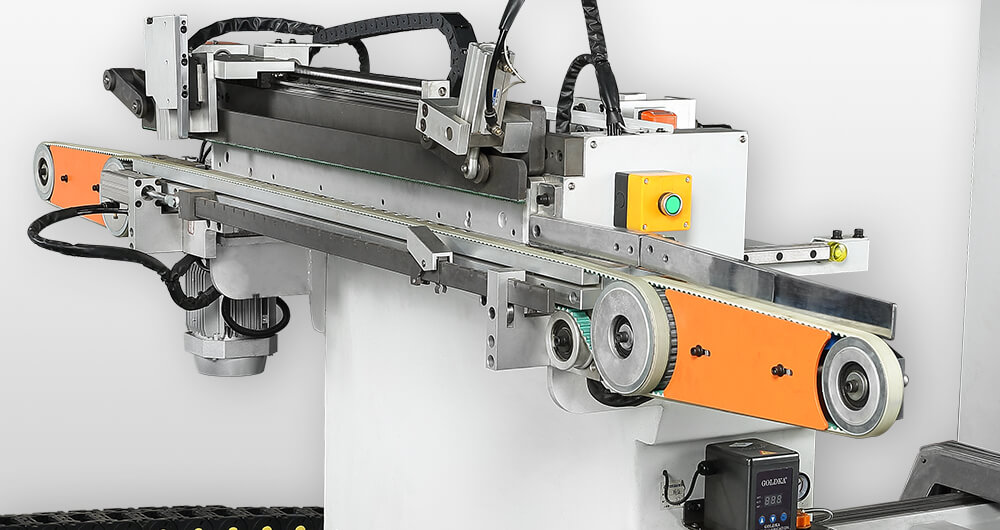

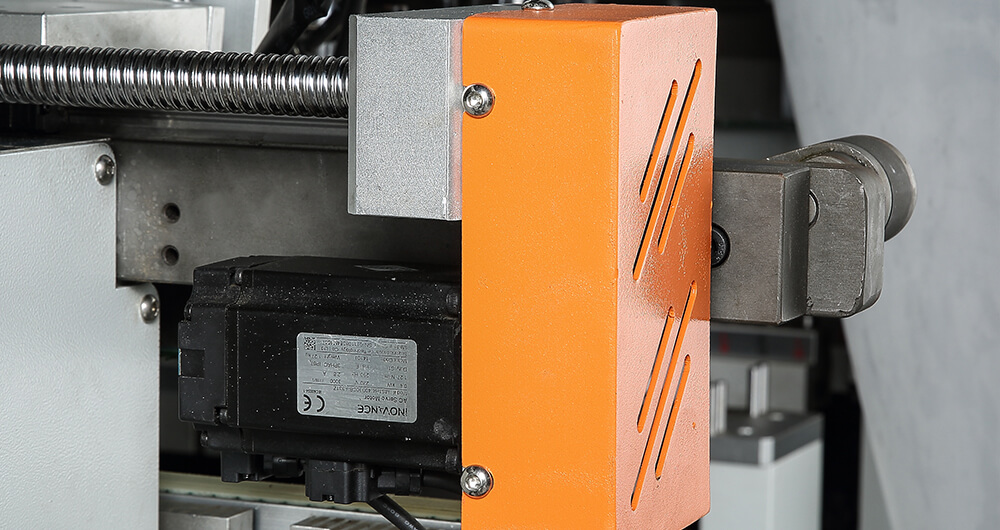

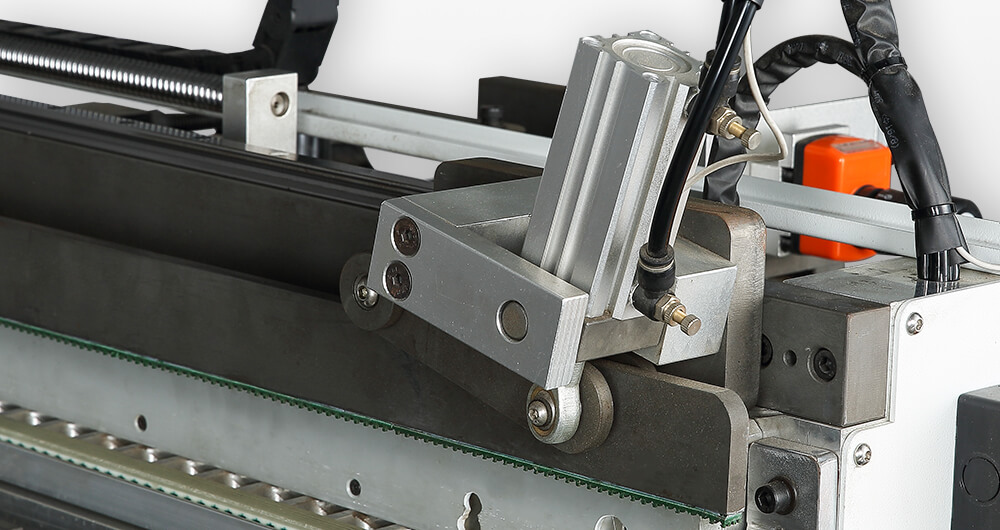

  • Servo lead screw transmission plate positioning device

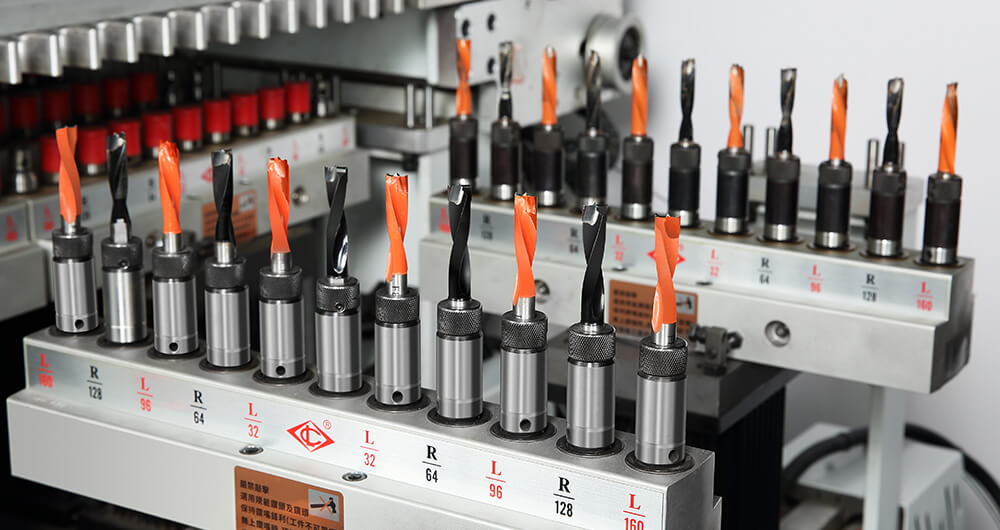

  • Precise - Servo drilling row movement positioning
  • Barcode scanner gun - The scanning machine instantly recognizes the drilling of the board parts.
  • Support the import and editing of various format drawings such as CAD drawings, MPR drawings, and 3D drawings in DFX format.
  • Automatically generate the respective drilling layout plans, graphically display the results, distinguish the colors of the effective drill bits for protection, the positions of the drill bits, and the coordinates of each control axis, etc.
  • Support the generation of a two-machine coordinated processing plan for a single graphic on machines A and B.

Technical information

 DRILLMAC C-610AP
Processed sheet length *[mm]260mm - 2450mm
Thickness of processed sheet material *[mm]8mm - 40mm
Maximum drilling depth *[mm]40
Number of vertical drill rows on top4
Number of left/right horizontal drill rows1/1
Number of servos17
Servo motor power *[kW]0.75 / 0.4
Maximum drilling diameter *[mm]
13(Adjacent drilling),35(Single drill bit)
Y-axis hole pitch *[mm]32 - 672
Spacing of holes on the X-axis *[mm]260 - 2450
Processing speed *[件/min]16-20
Total power *[kW]
15

*For more technical information, please download and view the relevant documents.
*Technical information may be subject to change!
