DRILLMAC C-9462AP

High-performance machine - High-efficiency batch four-sided drilling of sheet metal parts

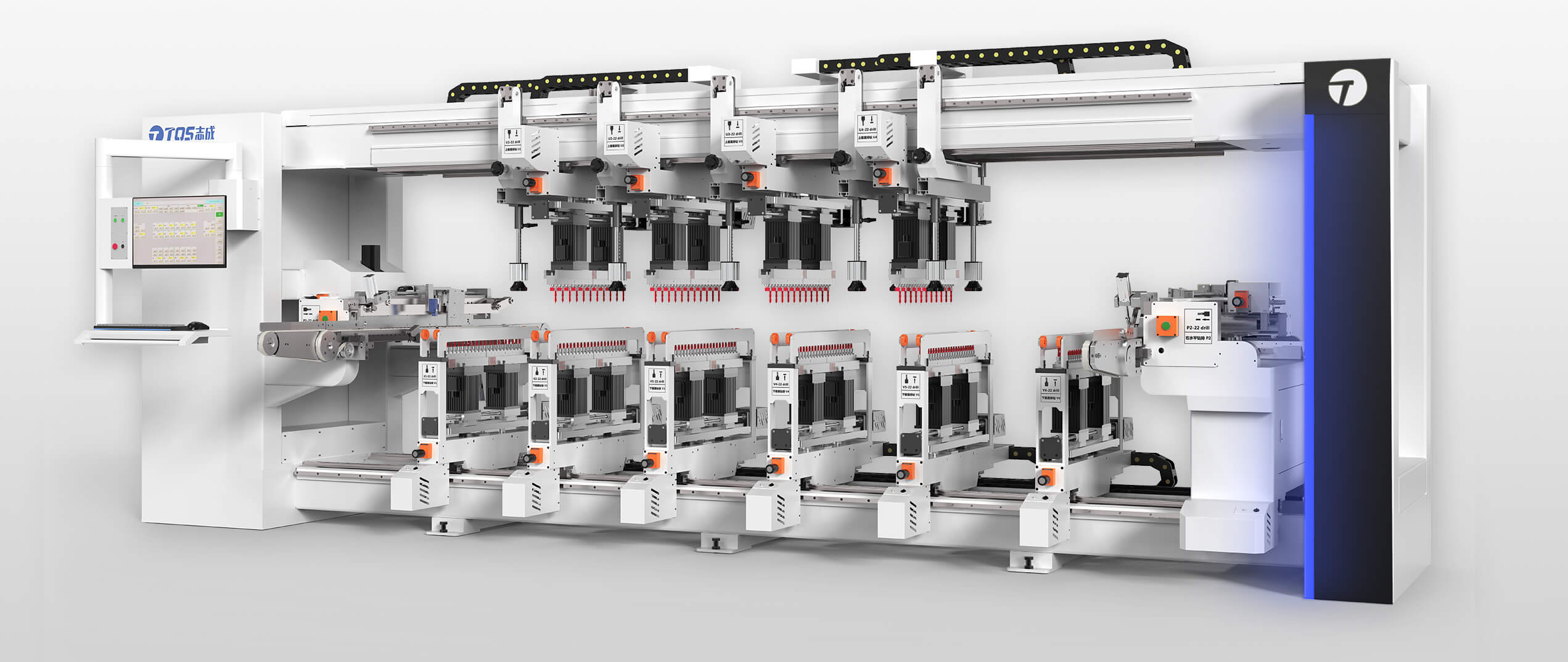

The DRILLMAC C-9462AP CNC four-sided twelve-row drill offers higher productivity and flexibility. The vertical drill groups on the top and bottom can move left and right, while the horizontal drill groups can move up and down. The depth positioning is all controlled by servo systems, reducing manual intervention and lowering error rates. All axis movements are controlled by EtherCAT bus, and it is equipped with an automatic feeding system for precise positioning. It supports the import of various format drawings and graphics and has 3D drawing capabilities.

( Series of CNC Multi-spindle Drilling Machines )

Equipment highlights

  • Servo lead screw transmission plate positioning device

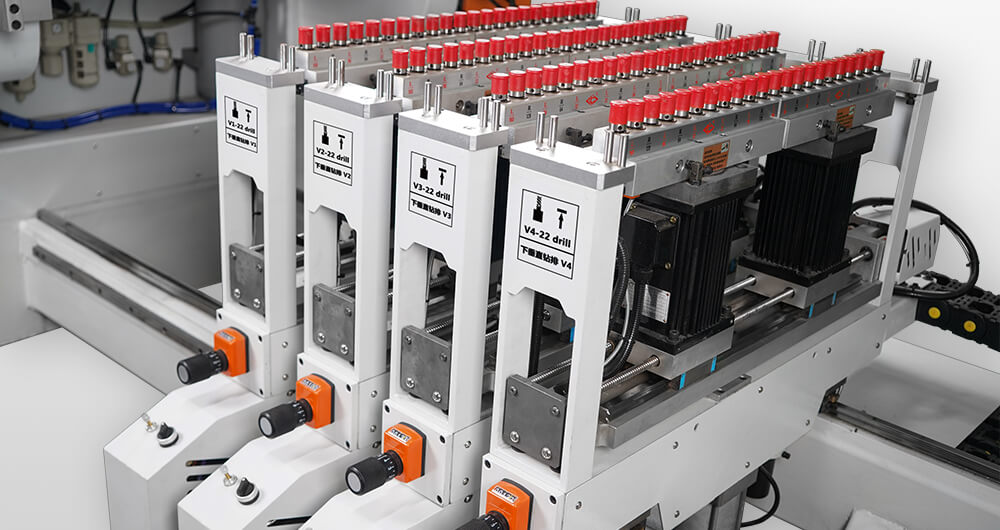

  • Precise - Servo drilling row movement positioning
  • Barcode scanner gun - The scanning machine instantly recognizes the drilling of the board parts.
  • Support the import and editing of various format drawings such as CAD drawings, MPR drawings, and 3D drawings in DFX format.
  • Automatically generate the respective drilling layout plans, graphically display the results, distinguish the colors of the effective drill bits for protection, the positions of the drill bits, and the coordinates of each control axis, etc.
  • Support the generation of a two-machine coordinated processing plan for a single graphic on machines A and B.

Technical information

 DRILLMAC C-9462AP
Processed sheet length *[mm]260mm - 2450mm
Thickness of processed sheet material *[mm]8mm - 40mm
Maximum drilling depth *[mm]40
Number of vertical drill rows on top4
Number of vertical drill rows downward6
Number of left/right horizontal drill rows1/1
Number of servos27
Servo motor power *[kW]0.75 / 0.4
Maximum drilling diameter *[mm]
13(Adjacent drilling),35(Single drill bit)
Y-axis hole pitch *[mm]32 - 672
Spacing of holes on the X-axis *[mm]260 - 2450
Processing speed *[件/min]16-20
Total power *[kW]
33

*For more technical information, please download and view the relevant documents.
*Technical information may be subject to change!
