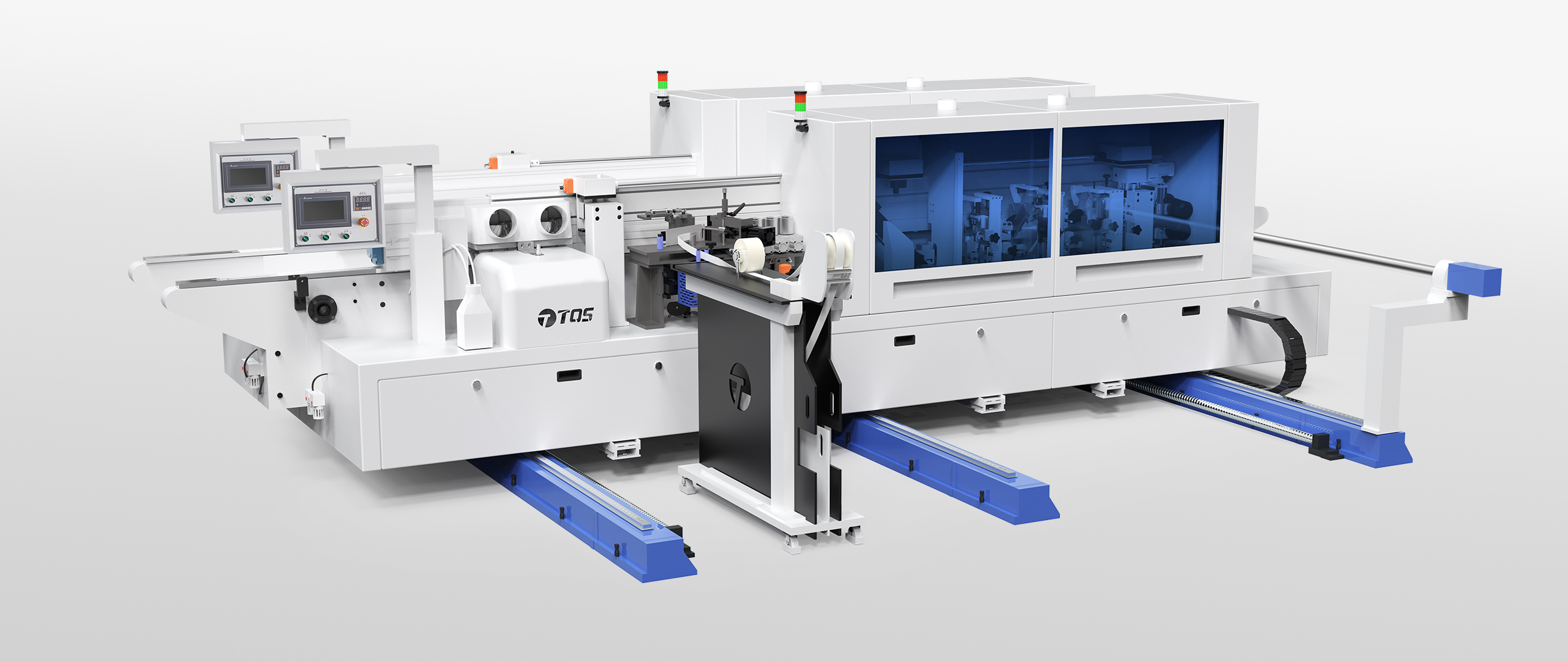

EDGEMAC E-2368

Both ends of the board are edge-banded simultaneously.

The EDGEMAC E-2356 is a fully automatic double-end edge banding machine with a maximum speed of 20m/min. This model is fully functional, with a stable and powerful system. It features a 25mm thickened tabletop frame, which is welded, annealed and precisely processed. The servo, planetary reducer and lead screw control transmission mechanism ensures more accurate positioning. It adopts a 35-type heavy-duty slider transmission structure, providing more stable rigidity. The chain pins are made of high-strength 20CrMnMo material, which has strong resistance to deformation. With intelligent operation control and high-speed, high-efficiency production, it is suitable for batch production of panel furniture.

Feed rate: 12m - 20m/min

Device units: Pre-milling, baking lamp, lower glue pot, four-wheel pressure bonding conveyor belt, single guide rail square head, rough grinding, fine grinding, edge scraping, cleaning agent, polishing

Equipment highlights

• High-efficiency batch production - simultaneous edge banding on both ends
• Flexible edge banding size range - up to 2650mm in width.
• Live configuration - Automatic feeding and discharging conveyor (optional), multi-belt edge banding tape storage mechanism (optional)
• The best supporting equipment for automated production lines
