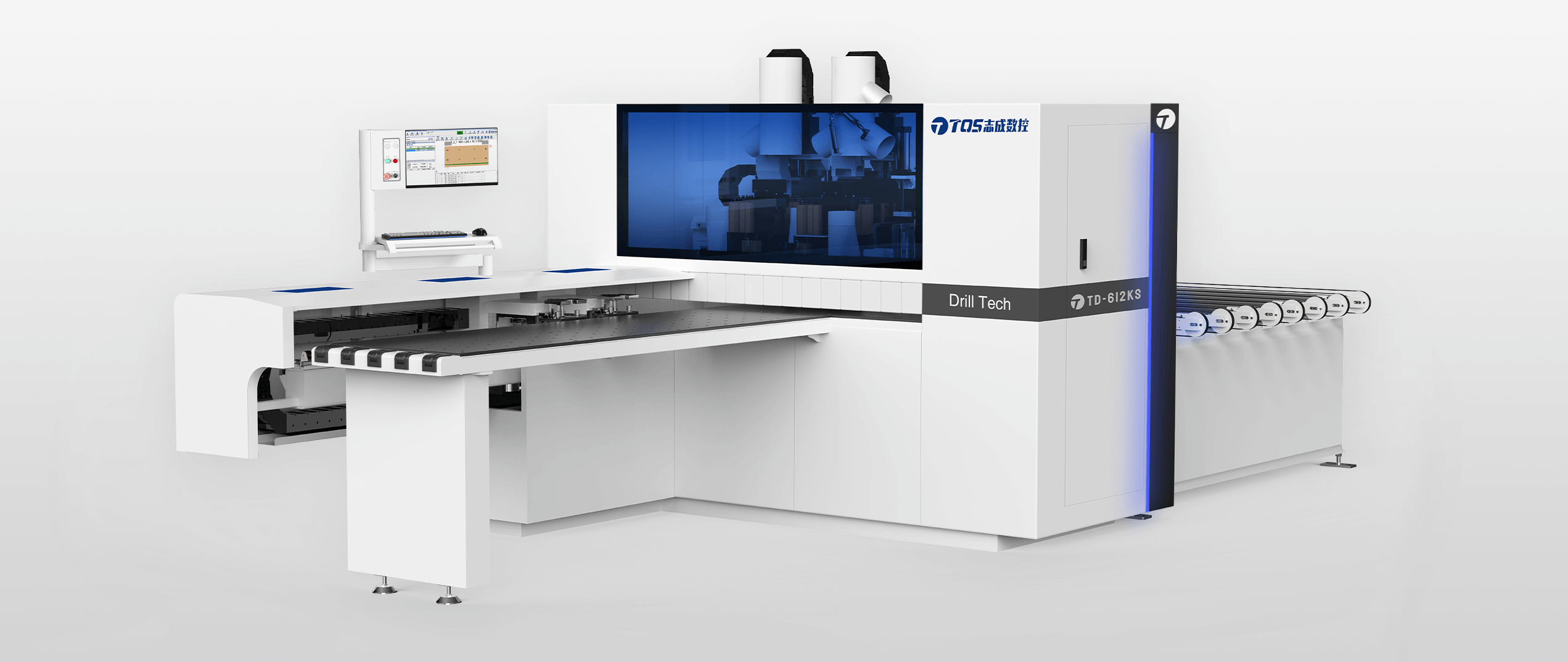

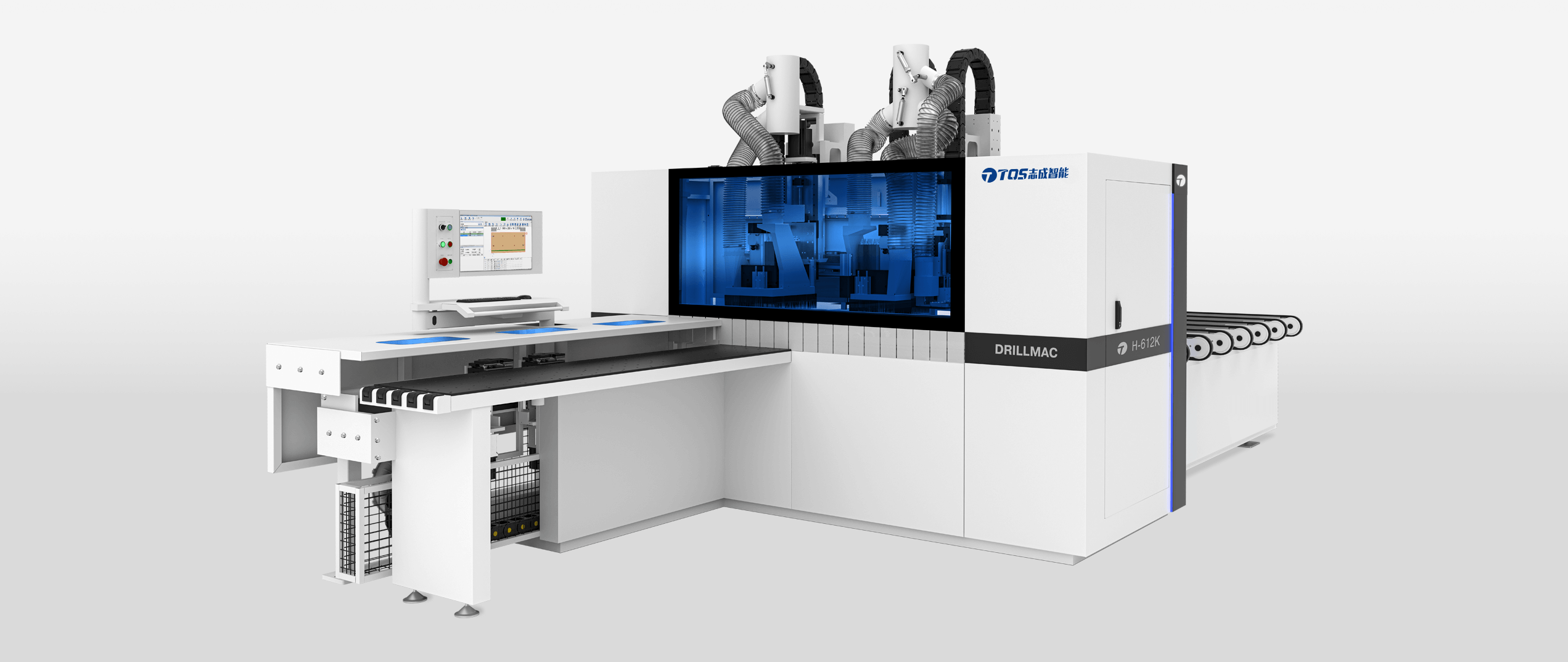

DRILLMAC H-612KS

First-class six-sided drilling technology, top and bottom slotting, milling and cutting.

The DRILLMAC H-612KS CNC six-sided drill takes pride in its speed and accuracy during processing. This machine adopts a crossbeam through-type structure. By scanning the QR code on the board, it automatically reads the processing information and completes positioning and feeding processes, easily achieving one-time completion of six-sided hole drilling. It is equipped with double clamps for feeding and can automatically adjust the clamping position according to the length of the board. By selecting different drill packages and spindle combinations, it can realize diversified processing such as six-sided drilling, upper and lower slotting, and milling of irregular shapes.

Equipment highlights

• Drilling six sides and grooving both the front and back of the board in one operation.
• Equipped with two CNC-controlled clamps, it ensures a firm and stable grip and precise positioning of the workpiece.
• Processing unit - Always in top condition
• Scanning for processing - Scan to read the processing program, no programming or debugging required.
• Minimum processing size - as small as 70mm x 35mm
• Flexible assembly - easily achieve multiple connection methods

Drilling package distribution map

Drill-down package

Processing unit

Double-jaw automatic feeding

Mobile positioning

Double-track side support device

Scanning for processing - Scan to read processing program

Air flotation workbench

High-rigidity frame

Automatic discharging (optional)

Conveyor belt integration (optional)
