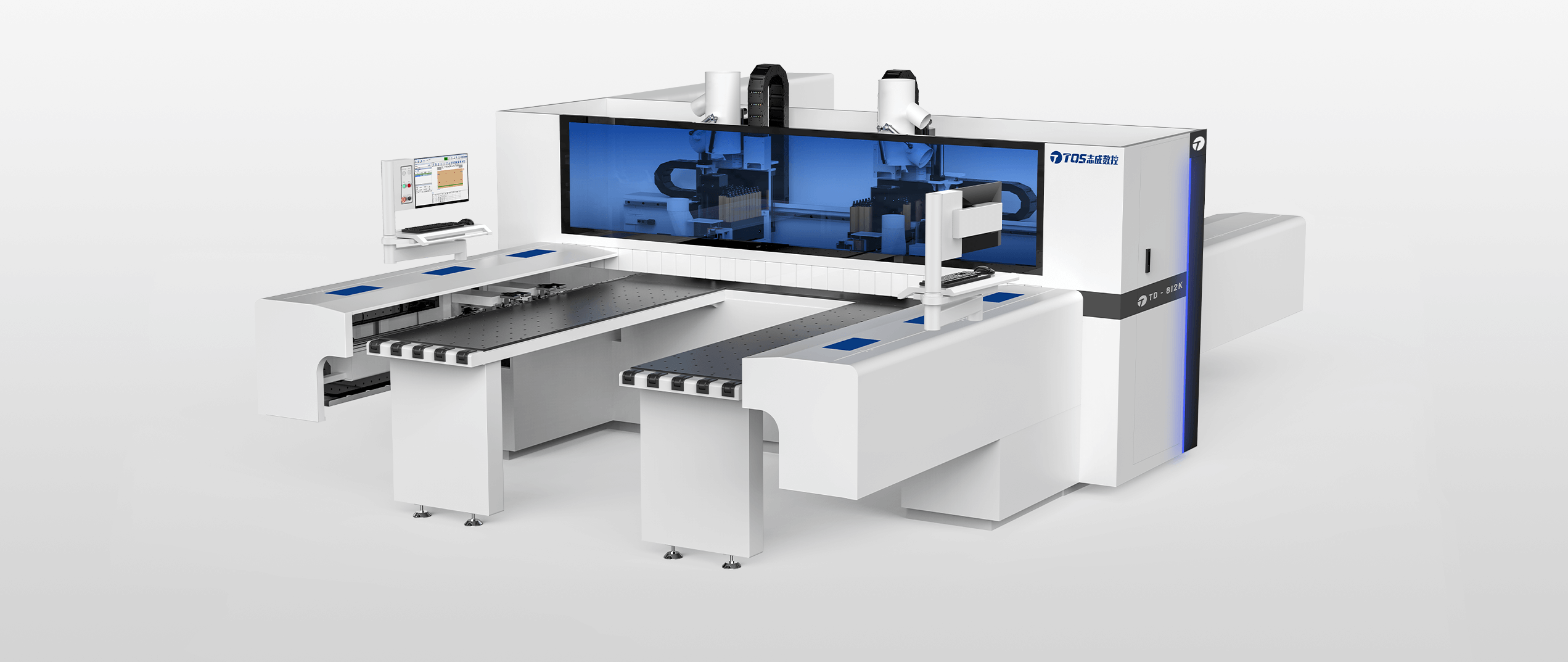

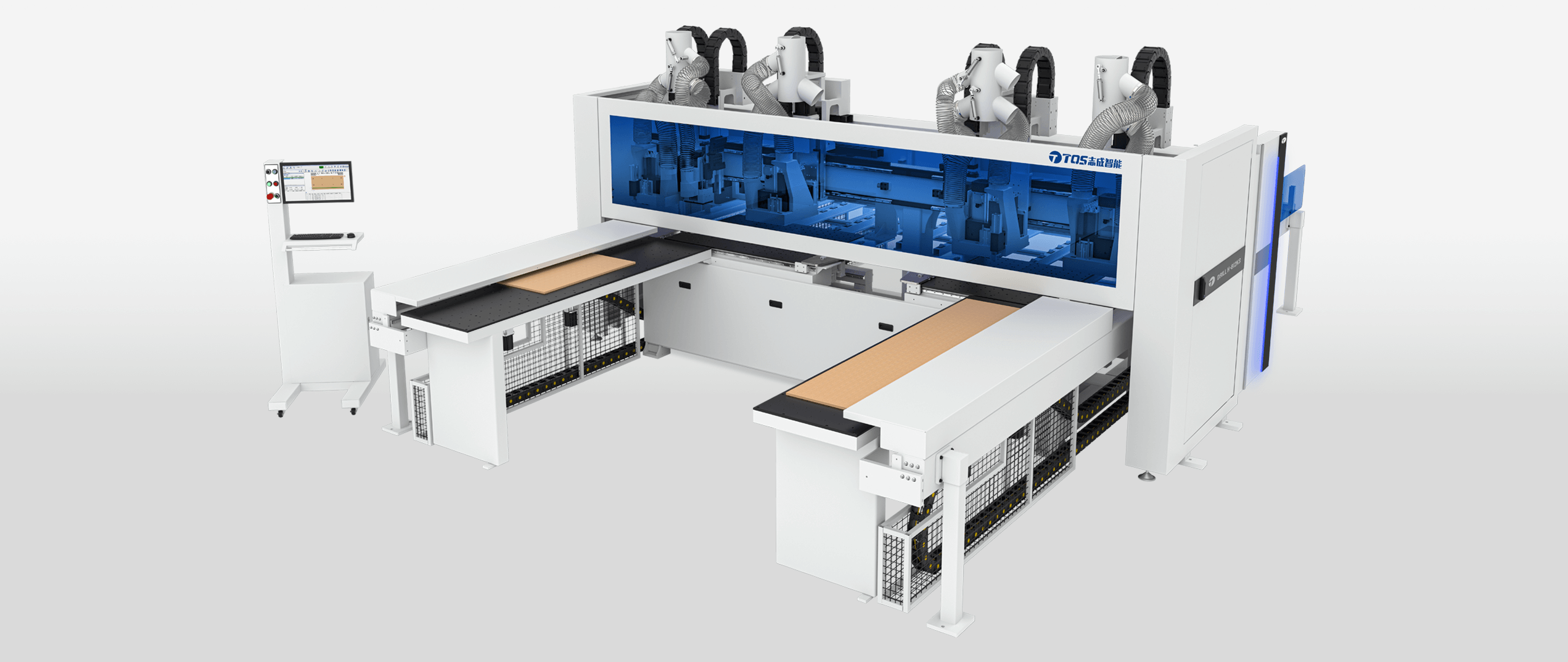

DRILLMAC H-812K

High-speed batch production, double efficiency in drilling and milling

The DRILLMAC H-812K adopts a dual-station structure. Boards of different sizes can be processed simultaneously in two processing units for six-sided drilling and upper and lower slot milling. The left and right processing units can work independently or in combination, providing you with flexible processing methods. It meets various batch processing needs with differentiated requirements and doubles the processing efficiency.

Equipment highlights

  • Double efficiency in drilling and milling
  • Drilling six sides and milling grooves on both sides of two processing unit panels at one time

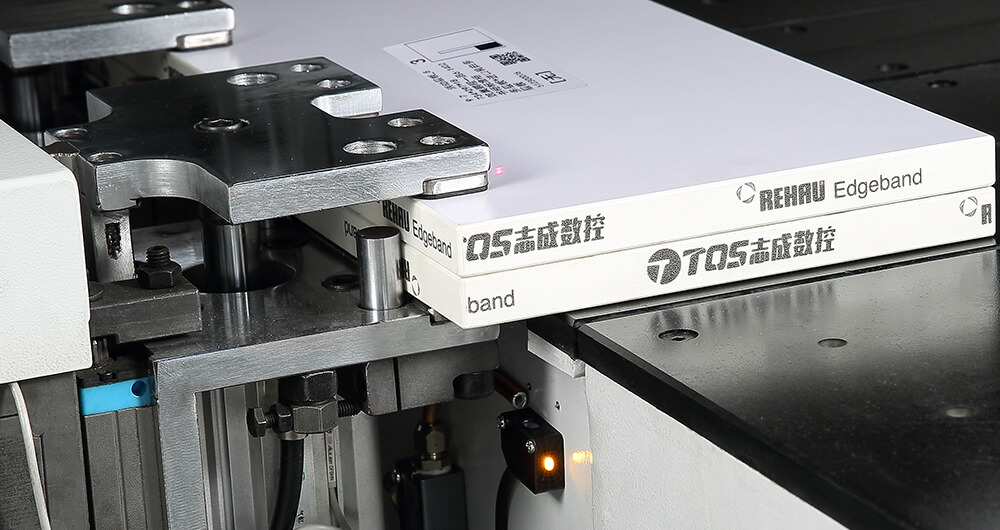

  • Equipped with four CNC-controlled clamps for stable and precise holding and positioning of workpieces

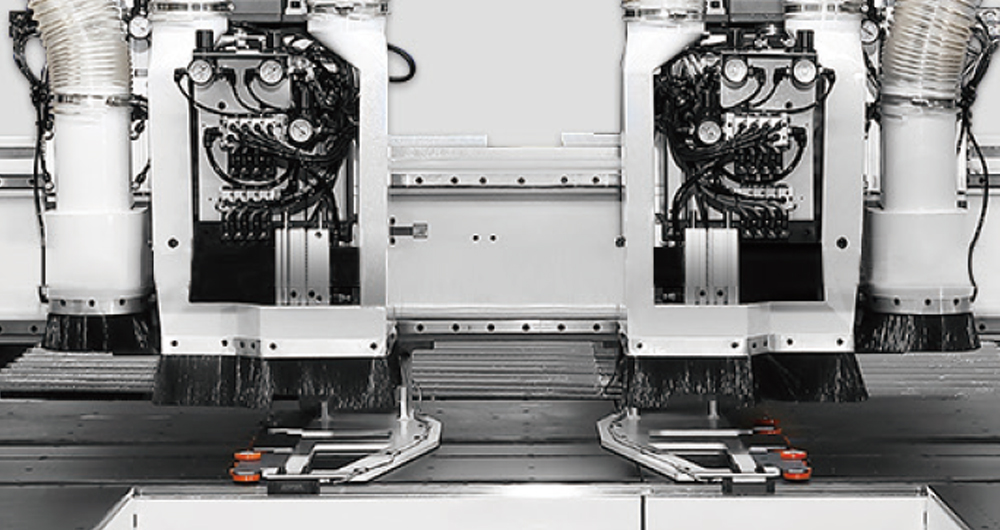

  • Three processing modes - 1. Independent operation of left and right drilling packages for processing 2. Combined drilling package processing 3. One processing unit for processing while the other for loading and unloading
  • High efficiency - Under the condition that the processing units operate independently to meet the maximum processing range, four identical panels can be processed at one time.

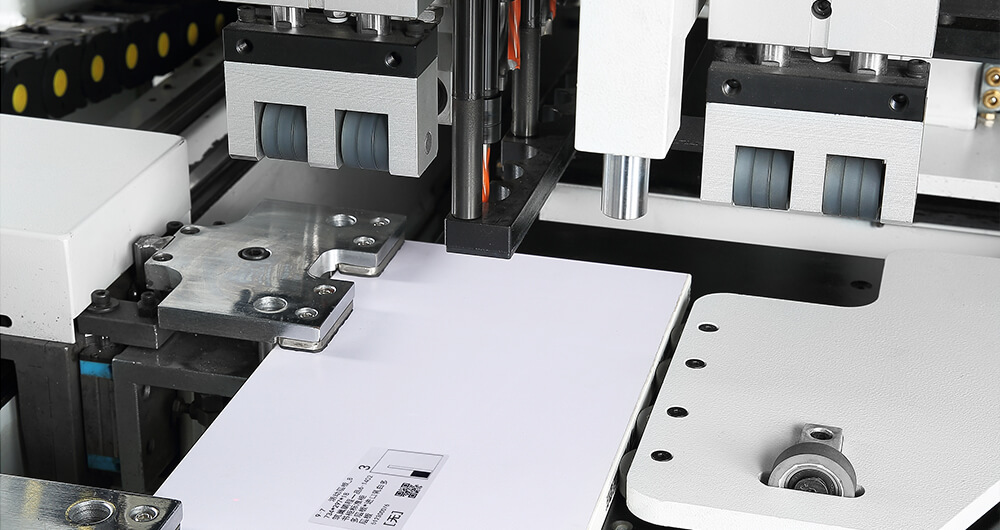

  • QR code processing - Scan the QR code to read the processing program, no programming or debugging required
  • Minimum processing size - 70mm X 35mm
  • Horizontal beam through-type automatic feeding
  • Automatic feeding with QR code reading to obtain processing program (612MSF)
  • Flexible configuration - Easily achieve various connection methods

Technical information

 DRILLMAC H-812K
Maximum width of single / double position sheet (vertical) *[mm]1200 / 650
Minimum width of sheet (vertical) *[mm]35
Maximum length of the sheet (vertical) *[mm]5000
Minimum length of sheet (vertical)*[mm]70
Maximum thickness of sheet (vertical) *[mm]50
Travel of each axis *[mm] Positioning speed of each axis *[m/min]
X1/X2/X3/X45300 / 130
Y1/Y2/Y3/Y4Y1/Y3 2500 / 110
Y2/Y4 1600 / 110
Z1/Z2/Z3/Z490 / 60
U1/U2130 / 90

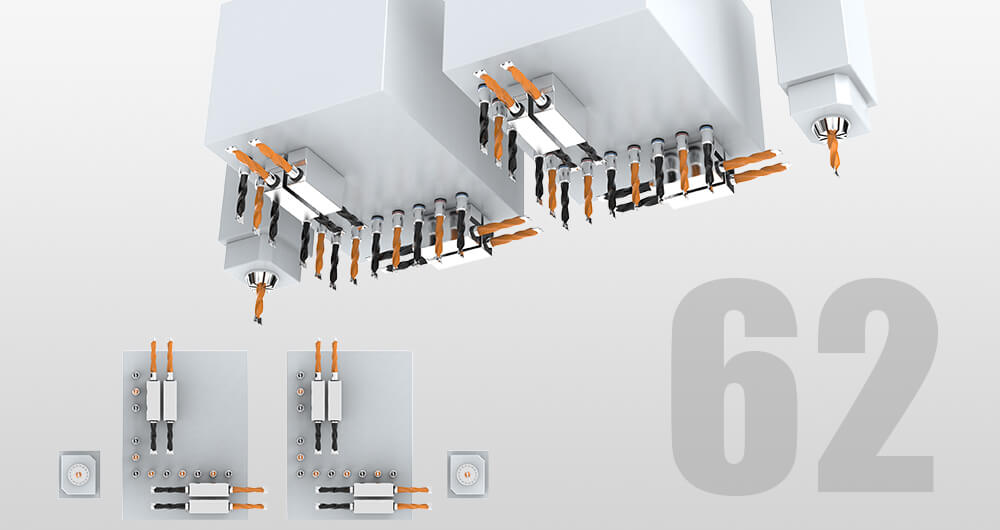

Drilling combination device
Vertical drilling axisUp:24 Below:18
Horizontal drilling shaft16
Drill group motor speed *[r/min]3400
Main shaft power *[kW]4 x 3.5
Total power*[kW]47

*For more technical information, please download and view the relevant documents.
*Technical information may be subject to change!
