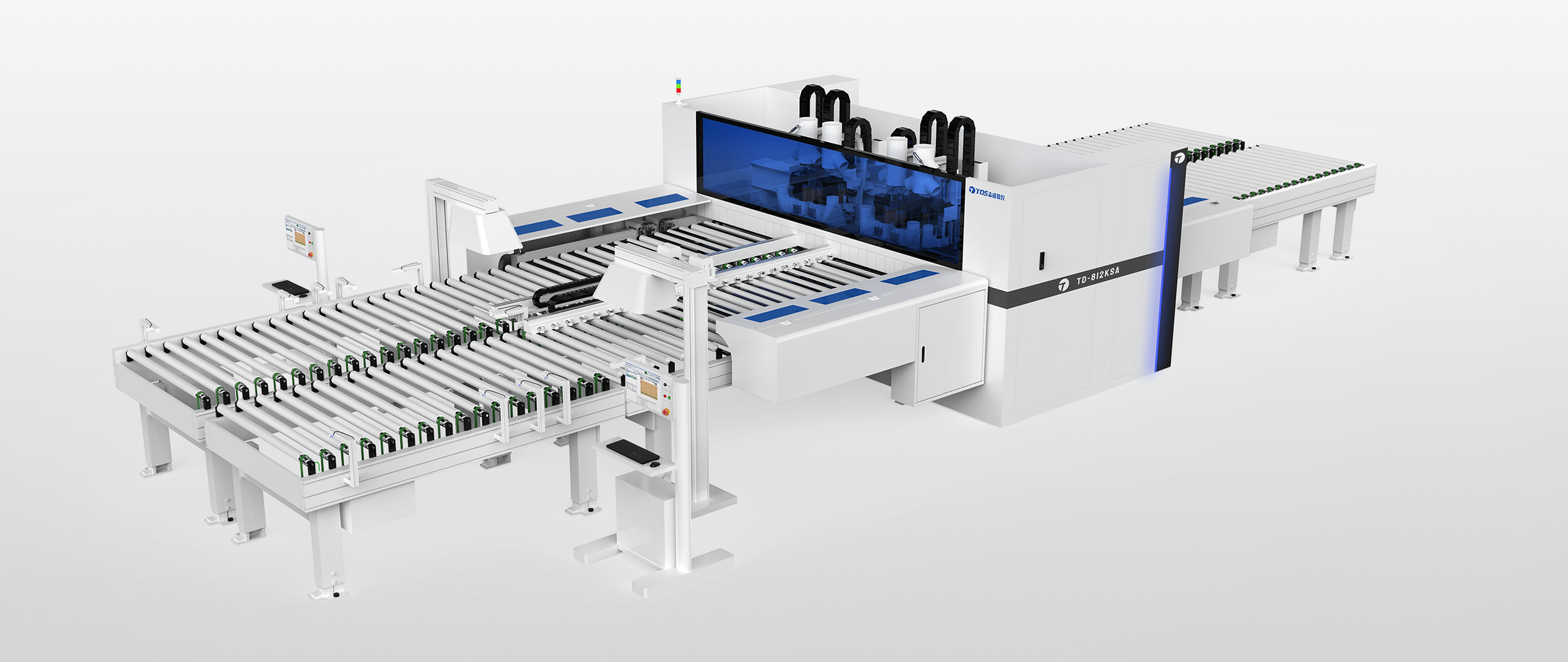

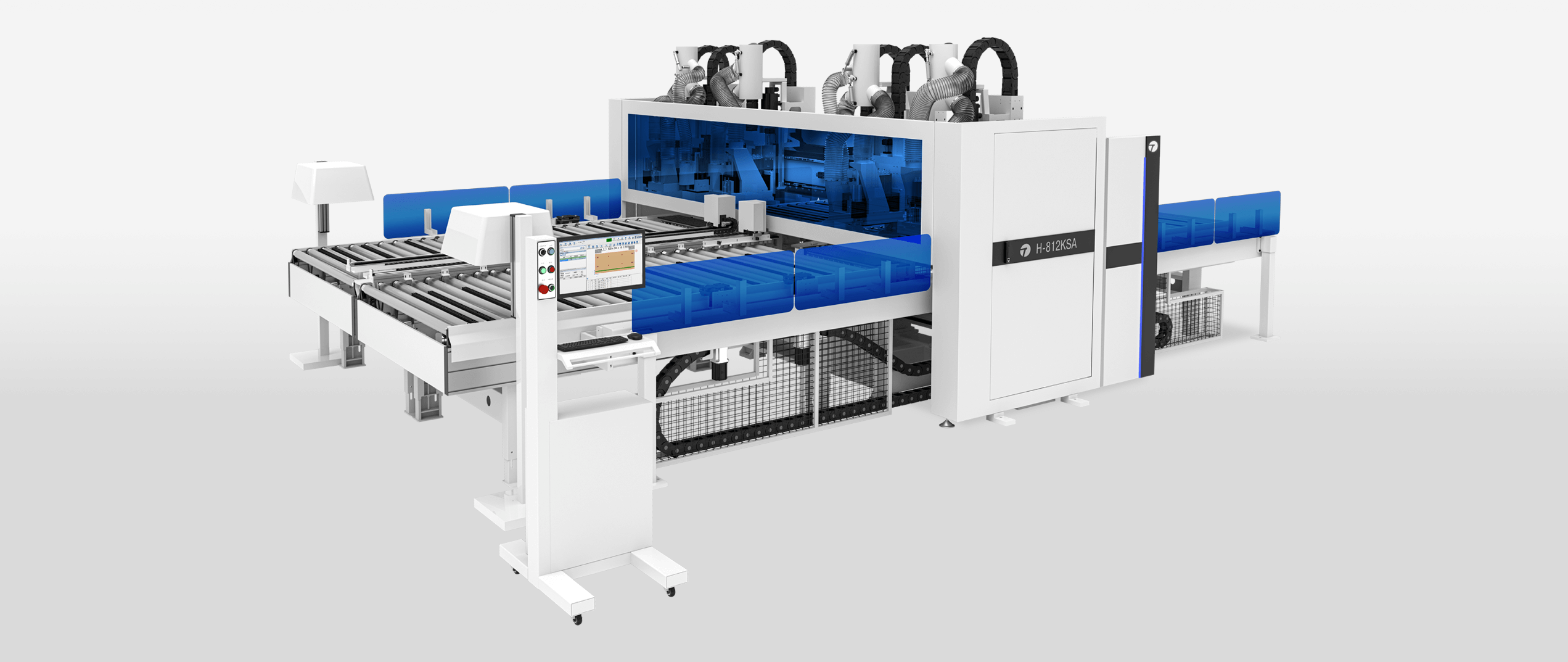

DRILLMAC H-812KSA

An independent, highly efficient and batch production solution

The DRILLMAC H-812KSA CNC six-sided drilling and milling machining center, as a standalone batch production solution, features dual-station automatic feeding and scanning, simultaneous processing, diversified and flexible six-sided drilling, and independent processing units equipped with dual drill packages. It can be flexibly combined with automation lines to meet higher batch production requirements. It can be connected with cutting, edge banding, and sorting to form a complete factory automation line.

Equipment highlights

  • The independent processing unit is equipped with dual drill packs - the dual drill packs process symmetrical holes synchronously, doubling the processing speed.
  • Double efficiency in drilling and milling
  • Drilling six sides and milling grooves on both sides of two processing unit plates at one time.
  • Equipped with four CNC-controlled clamps, it provides a long-lasting and stable grip and precise positioning of the workpiece.
  • Multiple processing modes meet differentiated processing requirements.
  • High efficiency - Under the condition that the processing unit operates independently to meet the maximum processing range, it can process 4 identical plates at a time.

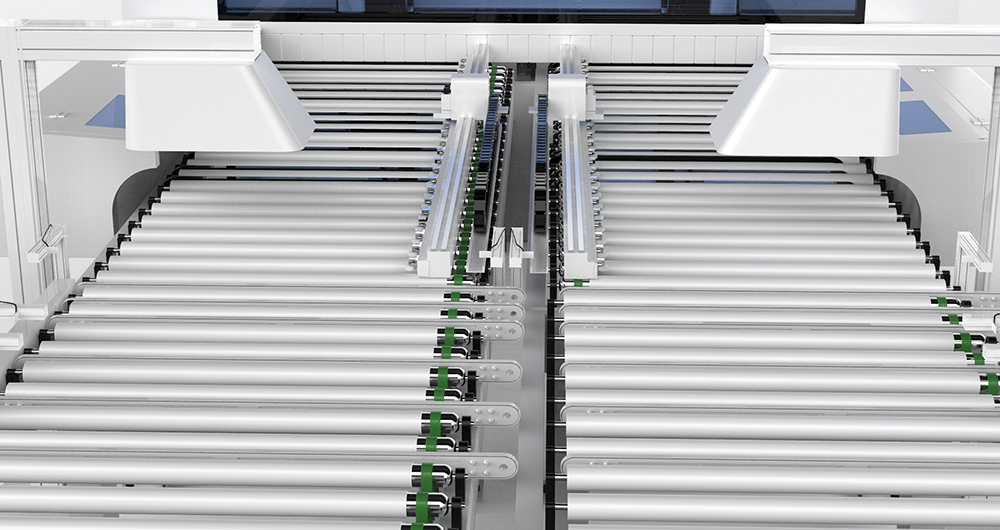

  • Horizontal beam through-type automatic feeding
  • Automatic feeding, scanning and reading of processing programs
  • Flexible assembly - easily achieve multiple connection methods

Technical information

 DRILLMAC H-812KSA
Width of the sheet (vertical) *[mm]左右:35-650
Length of the sheet (vertical) *[mm]70-2800
Thickness of plate (vertical) *[mm]10-50
Determine the maximum speed *[m/min]
X/U/Y/Z135/135/75/30
Drilling combination device
Vertical drilling axisUp:48 Below:18
Horizontal drilling shaft32
Drill group motor speed *[r/min]3400
Main shaft power *[kW]4 x 3.5
Total power *[kW]52.1

*For more technical information, please download and view the relevant documents.
*Technical information may be subject to change!
