TQS-712/707AP

High-efficiency automatic feeding drilling

This is suitable for completing three-sided drilling operations in one process during the production of panel furniture. The left and right horizontal drilling rows and the lower vertical drilling row can be freely combined for work. It can process up to 13-16 panels per minute. It adopts a belt transmission feeding method and is equipped with a ball screw transmission positioning device to ensure precise positioning. The vertical drilling row is equipped with a digital display, and it is controlled by a logic control programming PLC system.

Drill bit arrangement: 1 horizontal drill bit row on the left, 1 horizontal drill bit on the right, and 5 vertical drill bit rows at the bottom.

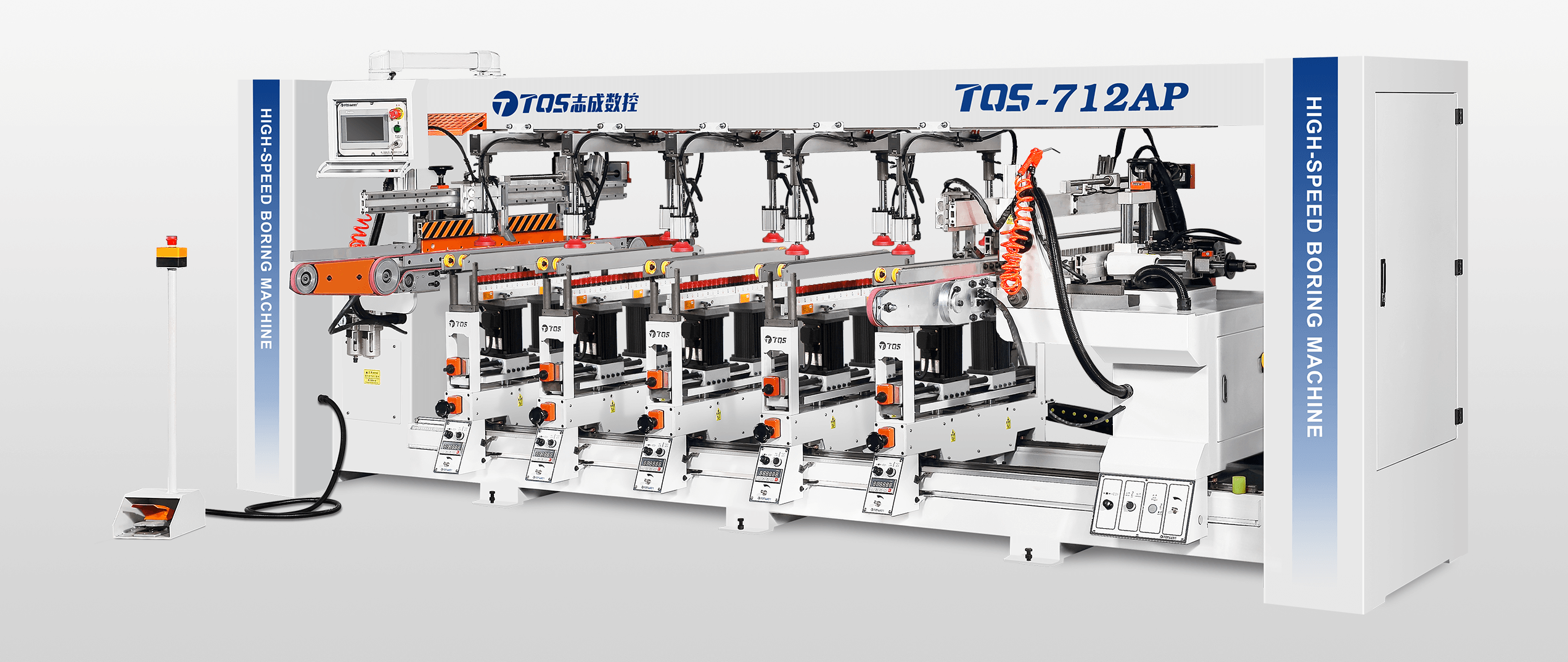

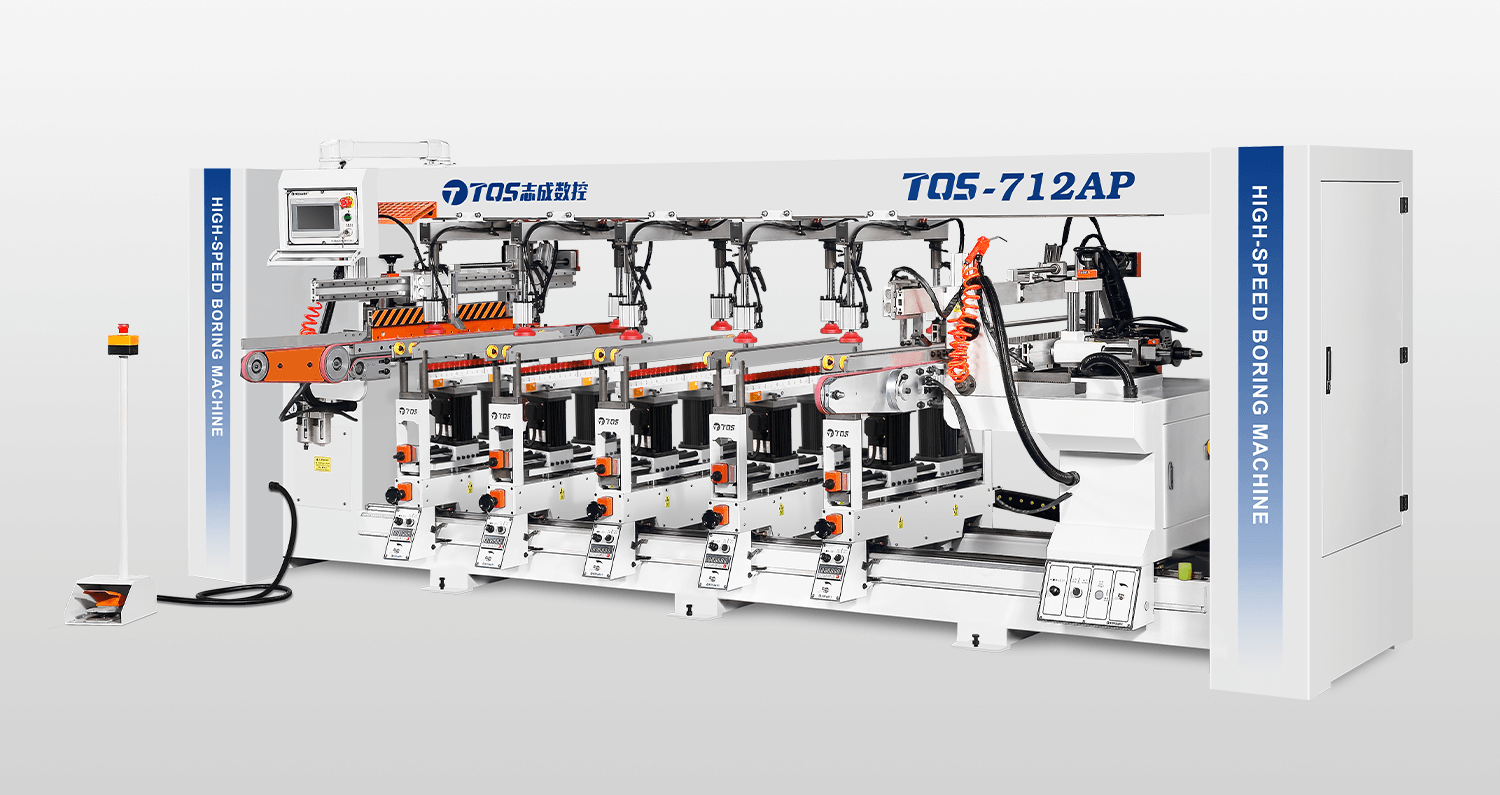

TQS-712AP

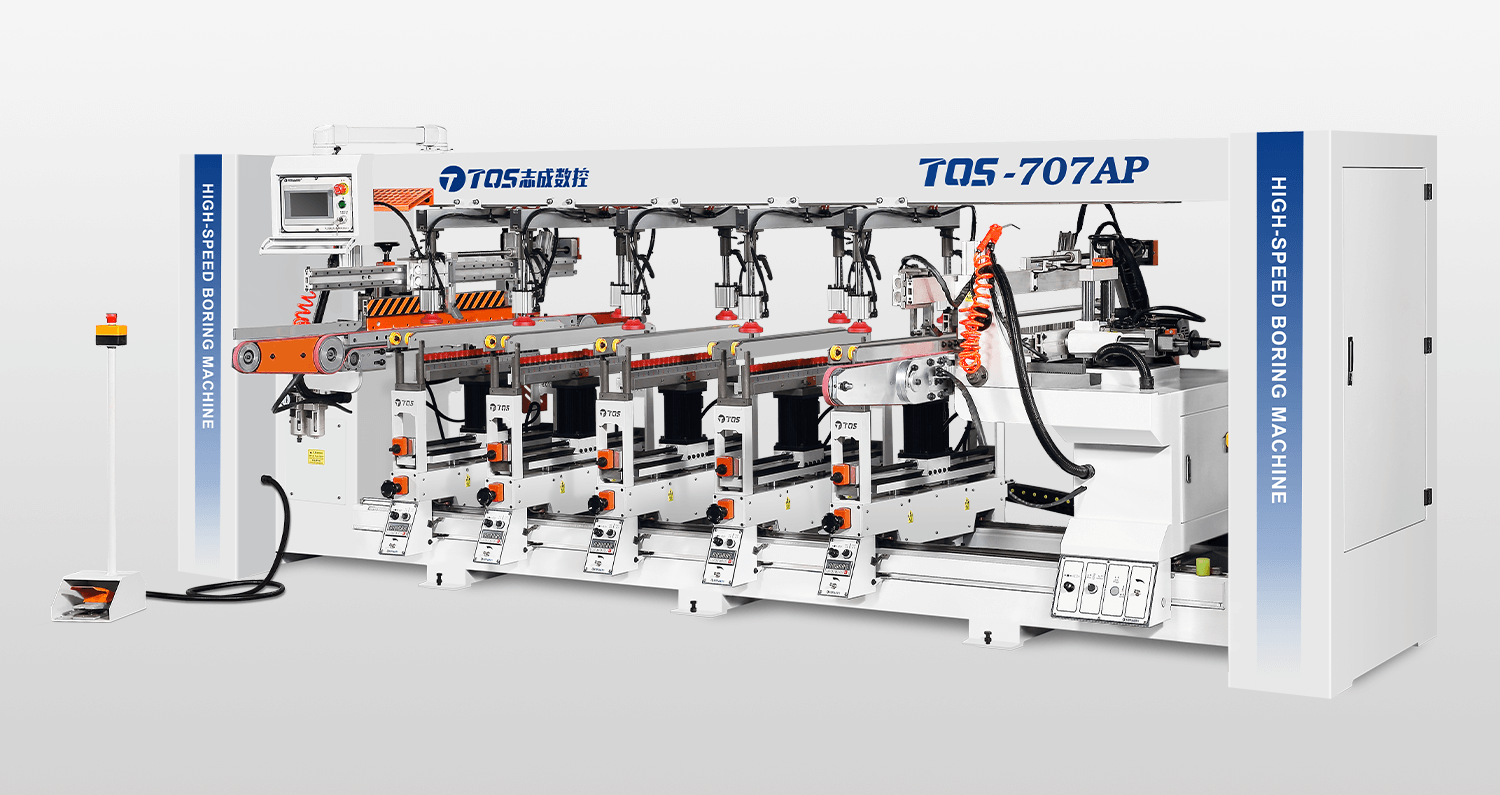

TQS-707AP

Equipment highlights

• Fast processing - capable of processing 13 to 16 boards per minute
• Ball screw drive positioning device
• Flexible configuration - Servo control board positioning (optional)
• Convenient operation - Humanized PLC human-machine interface, digital tube display
• High-efficiency automatic feeding by belt

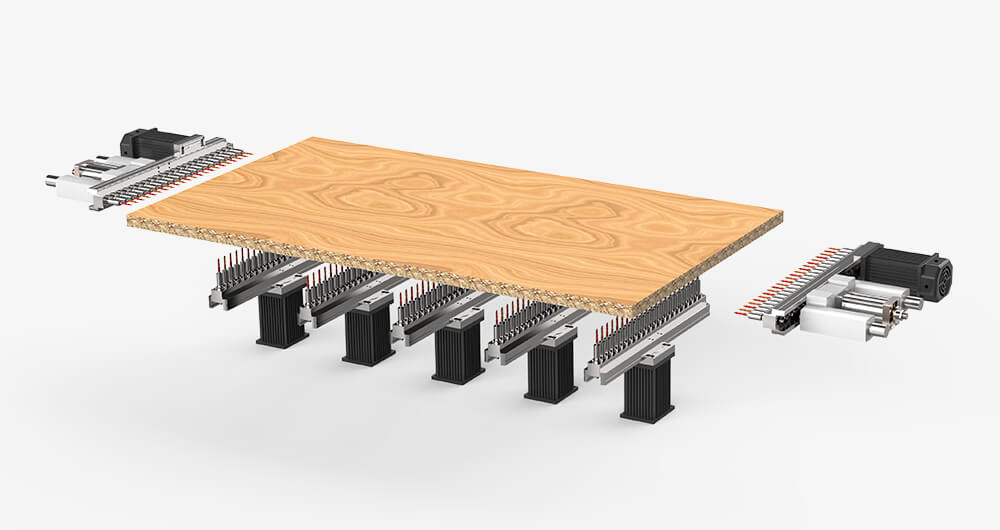

Processing Diagram (TQS-712AP)

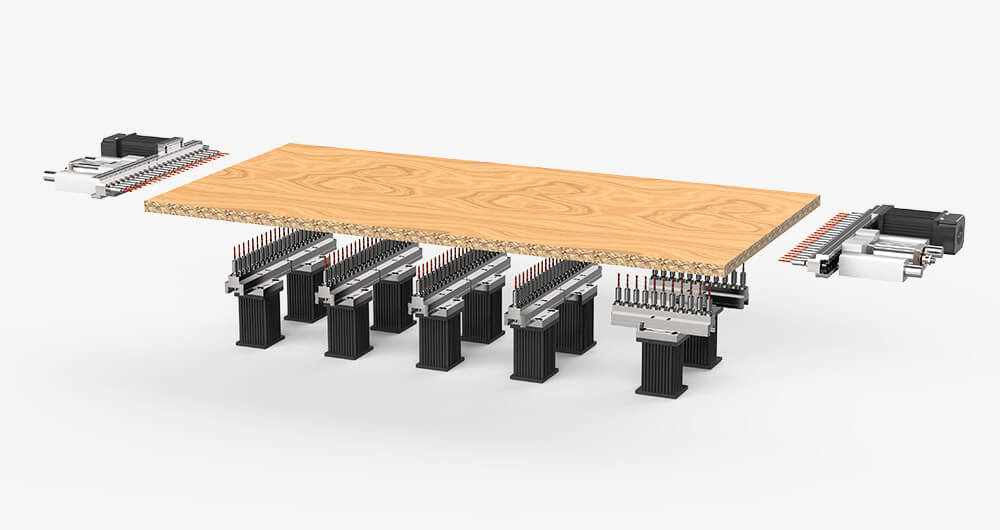

Processing Diagram (TQS-707AP)

Ball screw drive positioning device

Horizontal drilling array

Belt conveyor device

PLC human-machine interface

Servo drive positioning device (optional)）

Down vertical drill row (TQS-712AP)

Down vertical drill row (TQS-707AP)

Vertical drilling row positioning device

Material pressing device

Drill bit box
